- Coil Voltage: 240V AC
- Contact Amp Rating (Resistive): 25A @ 300VAC, 13A @ 28VDC
- Contact Material: Silver Alloy
- Hz: 50/60
- Minimum Operating Temperature: -22 Degrees F
- Frequency: 50/60 Hz
Specifications
| Part Number | 389FXBXC1-240A |
| Brand | Schneider Electric |
| CAD Drawing | 2D Drawing (.pdf) |
| Mounting Style | Flange Mount |
| Electrical Connection | Quick Connect |
| Base Shape | Octal |
| Number of Pins | 8 |
| Coil Voltage | 240V AC |
| Overall Height - Relay | 2.9 in |
| Dimensions | 2.90"H, 1.53"W, 1.40"D |
| Body Depth | 2.25 in |
| Body Height | 2.43 in |
| Body Width | 2.5 in |
| Overall Depth | 2.9 in |
| Item | Enclosed Power Relay |
| Current Rating | 25 A |
| Contact Form | DPDT |
| Contact Rating (AC) | 25 A @ 250/300V |
| Contact Rating (DC) | 15 A @ 28V |
| Features | 1hp @ 480-600V, Flag Indicator |
| Number of Poles | 2 |
| Contact Amp Rating (Resistive) | 25A @ 300VAC, 13A @ 28VDC |
| Contact Material | Silver Alloy |
| Standards | CE Certified, CSA Certified, cURus |
| Hz | 50/60 |
| Power Consumption - Relay | 3.5 VA |
| Coil Rating | 3.5VA, 1.4W |
| Dielectric Strength | 1,600V AC Between Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles |
| Minimum Operating Temperature | -22 Degrees F |
| Frequency | 50/60 Hz |
| Horsepower @ 120V AC | 1 hp |
| Mechanical Operating Durability | 5,000,000 |
| Maximum Operating Temperature | 131 Degrees F |
| Coil Resistance | 7,200 ohm |
| Power Consumption | 1.3 W, 2 VA |
| Operating Current | 13 A at 28V DC (Resistive Load), 15 A at 28V DC-1 (NO/NC), 20 A at 277V AC (Ballast), 22 A at 120V AC (Full Load), 25 A at 250V AC-1 (NO/NC), 25 A at 300V AC (Resistive Load), 5 A at 600V AC (Resistive Load) |
| Input Voltage | 240V AC |
| Motor Rated | Yes |
| Weight | 2.96 oz |
| Electrical Operating Durability | 100,000 |
| Status Indicator | Mechanical Flag |
| Series | 389F Power Series |
| Minimum Switching Current | 100 mA |
| Maximum Switching Voltage | 600V AC |
| Horsepower @ 240V AC | 1 1/2 hp |
| Response Time | 20 msec |
| CAD Available | Yes |
| Ambient Air Temperature for Storage | -22 to 185°F (-30 to 85°C) |
| Ambient Air Temperature for Operation | -22 to 131°F (-30 to 55°C) |
| Voltage Range | 0.85...1.1 Uc AC |
| Power consumption in W | 1.3 W DC |
| Connections Terminals | Quick |
| Motor Power HP | 1.5 hp 200/240 V AC 50/60 Hz; 1 hp 120...200V AC 50/60 Hz; 1 hp 600 V AC 50/60 Hz |
| Power consumption in VA | 2 VA AC |
| Drop-out Voltage Threshold | >= 0.1 Uc AC/DC |
| Contact Composition | 2 NC + 2 NO |
| Product Certifications | cURus; CSA; CE |
| Push-To-Test Method | No Test Button |
Description

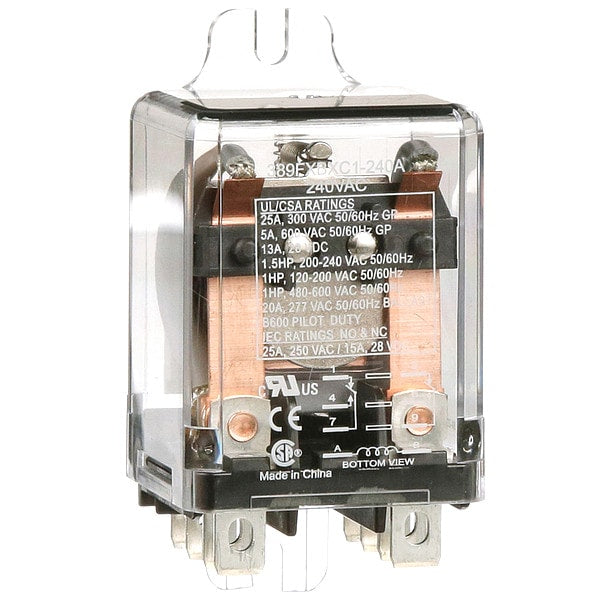

The Schneider Electric 389FXBXC1-240A is an enclosed power relay. This relay uses an electromagnetic coil to open or close its double-pole double-throw (DPDT) contacts, switching electrical loads. It has a 240V AC coil voltage and is rated for 25 A at 250/300V AC and 15 A at 28V DC, with a flag indicator and a 1hp rating at 480-600V.
