- holding parallelism within: 0.0001″ (0.003 mm) and squareness within 0.0002″ (0.005 mm) for reliable metrology setups. HARDENED TOOL STEEL CONSTRUCTION - Manufactured from premium hardened tool steel and heat-treated to HRC 56-68 for maximum durability
- and long-term dimensional stability. MATCHED ROLLS - Feature a: 2.00″ (50 mm) center-to-center distance with roll accuracy held within +0.00008″
Specifications
| Part Number | 3800-5410 |
| Brand | PRO-Series |
| Item | HHIP 2″ Center Distance Precision Magnetic Sine Bar PRECISION WORKHOLDING & INSPECTION - Features an integrated permanent magnet with 8 lbs. of holding force |
| holding parallelism within | 0.0001″ (0.003 mm) and squareness within 0.0002″ (0.005 mm) for reliable metrology setups. HARDENED TOOL STEEL CONSTRUCTION - Manufactured from premium hardened tool steel and heat-treated to HRC 56-68 for maximum durability |
| and long-term dimensional stability. MATCHED ROLLS - Feature a | 2.00″ (50 mm) center-to-center distance with roll accuracy held within +0.00008″ |
| Features | designed specifically to secure precision gauge block stacks and light ferrous workpieces during surface plate layout and inspection without distorting delicate parts. HIGH-PRECISION ACCURACY - Ground to extreme tolerances, wear resistance, ensuring exact angle calculations with standard sine tables. COMPACT METROLOGY DESIGN - 3″ overall length provides convenient handling on benchtop granite plates and layout setups. |
| UPC | 769053014838 |
Description

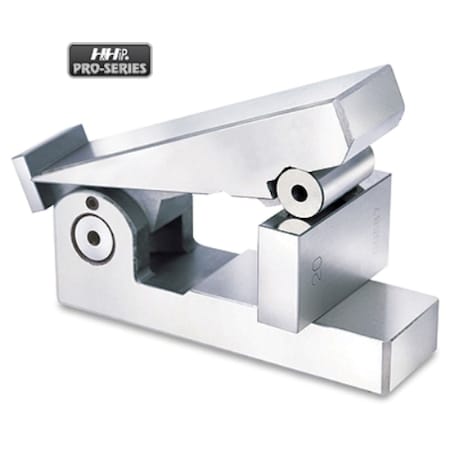

The PRO-Series 3800-5410 is a precision magnetic sine bar with a 2-inch center distance between matched rolls. It features an integrated permanent magnet with 8 lbs. of holding force and holds parallelism within 0.0001 inch and squareness within 0.0002 inch. The hardened tool steel body is heat-treated to HRC 56-68, and the 3-inch overall length suits benchtop layout work.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
