- BtuH Capacity: 300,000 BtuH
- Inlet Size: 3/4 in
- Outlet Size: 3/4 in
- Port Connection Size: 3/4 in
- Pressure Tap Connection Size: 1/8 in
- Amps AC: 0.41 A
Specifications
| Part Number | 36H33-412 |
| Brand | Copeland |
| BtuH Capacity | 300,000 BtuH |
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | Direct Spark Ignition, HSI/DSI/Intermittent and Proven Pilot, Intermittent Pilot, Proven Pilot |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Port Connection Size | 3/4 in |
| Pressure Tap Connection Size | 1/8 in |
| Overall Length | 3 1/4 in |
| Overall Height | 5 in |
| Reducer Bushing Kit | (2) 3/4 x 1/2 in |
| Valve Type | Slow Opening |
| For Use With | Intermittent Ignition Systems (Direct Ignition, Proven Pilot, HSI) |
| Amps AC | 0.41 A |
| Ambient Temp. Range | -40 Degrees to 175 Degrees F |
| Item | Gas Valve |
| LP Conversion Kit | Yes |
| Pressure Setting Range | LP 7.0 to 12.0 in wc, NG 2.5 to 5.0 in wc |
| Flow Direction | Straight-Thru |
| Includes | (2) 3/4 x 1/2 in Reducer Bushings, Natural to LP Gas Conversion Kit |
| Side Taps | No |
| Inlet Pressure Tap | Yes |
| Standards | CSA |
| Max. Inlet Pressure | 1/2 psi |
| Includes On/Off Switch | On/Off Switch Included |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Installation Orientation | Vertical |
| Manufacturer Series | 36H |
| Electrical Connections | Quick Connect Terminal |
| Heating Capacity - Maximum | 300,000 BtuH |
| Opening Characteristic | Slow Opening |
| Voltage | 24V AC |
| Includes Side Taps | Side Taps Not Included |
| Reducer Bushings Included | (2) 3/4 x 1/2 in |
| For Media | Liquid Propane, Natural Gas |
| Includes Conversion Kit | Conversion Kit Included |
| Operating Temperature - Minimum | -40 Degrees F |
| Pilot Type | Direct Spark Ignition, Hot Surface Ignition, Intermittent Pilot |
| Port Connection Gender | Female |
| Sensing Type | Flame Sensor |
| Current | 0.41 A |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Includes Pressure Regulator | Pressure Regulator Included |
| Port Connection Type | NPT |
| Valve Design | Single |
| Pressure Tap Connection Type | NPT |
| Operating Temperature - Maximum | 175 Degrees F |
Description

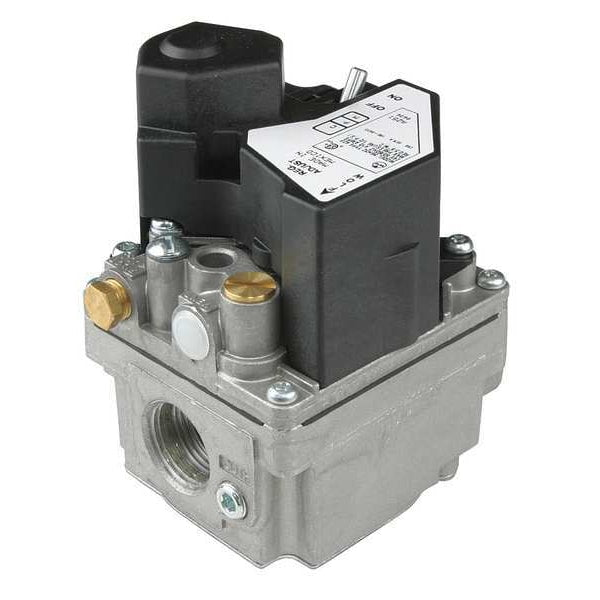

The Copeland 36H33-412 is a slow-opening gas valve for natural gas or liquid propane. This type of valve regulates the flow of gas to the burner, opening gradually to ensure a controlled ignition sequence. It is designed for use with intermittent ignition systems, including direct spark ignition, HSI, and proven pilot systems, and operates at 24 V with a 300,000 BtuH capacity and a 0.41 A electrical rating.
