- BtuH Capacity: 280,000 BtuH
- Inlet Size: 3/4 in
- Outlet Size: 3/4 in
- Pressure Tap Connection Size: 1/8 in
- Pilot Port Connection Size: 1/4 in
- Port Connection Size: 3/4 in
Specifications
| Part Number | 36C03-433 |
| Brand | Carrier |
| BtuH Capacity | 280,000 BtuH |
| Coil Volts | 24 V |
| Gas Type | NG/LP |
| Ignition Type | Standing Pilot |
| Inlet Size | 3/4 in |
| Outlet Size | 3/4 in |
| Overall Length | 3 15/16 in |
| Pressure Tap Connection Size | 1/8 in |
| Pilot Port Connection Size | 1/4 in |
| Port Connection Size | 3/4 in |
| Overall Depth | 2 7/8 in |
| Reducer Bushing Kit | (2) 3/4 x 1/2 in |
| Valve Type | Fast Opening |
| Amps AC | 0.23 A |
| Ambient Temp. Range | -40 to 175 Degrees F |
| Item | Gas Valve |
| LP Conversion Kit | Yes |
| Pressure Setting Range | 2.5 to 5.0 in wc |
| Flow Direction | Straight-Thru |
| Includes | (2) 3/4 x 1/2 in Reducer Bushings, ECO Terminals, LP Conversion Kit, Reducer Bushings, Thermocouple Actuated Line Interrupter |
| Side Taps | Yes |
| Inlet Pressure Tap | Yes |
| For Media | Liquid Propane, Natural Gas |
| Includes Pressure Tap | Pressure Tap Inlet Included, Pressure Tap Outlet Included |
| Includes On/Off Switch | On/Pilot/Off Switch Included |
| Port Connection Gender | Female |
| Current | 0.23 A |
| Port Connection Type | NPT |
| Opening Characteristic | Fast Opening |
| Voltage | 24V AC |
| Reducer Bushings Included | (2) 3/4 x 1/2 in |
| Pilot Port Connection Type | Compression |
| Includes Pressure Regulator | Pressure Regulator Included |
| Valve Design | Single |
| Pressure Tap Connection Type | NPT |
| Includes Conversion Kit | Conversion Kit Included |
| Operating Temperature - Maximum | 175 Degrees F |
| Heating Capacity - Maximum | 280,000 BtuH |
| Sensing Type | Flame Sensor |
| Includes Thermostat | Mechanical Thermostat Not Included |
| Includes Side Taps | Side Taps Included |
| Pilot Type | Standing Pilot |
| Manufacturer Series | 36C |
| Includes Pilot Generator Kit | Pilot Generator Kit Not Included |
| Installation Orientation | Vertical |
| Operating Temperature - Minimum | -40 Degrees F |
Description

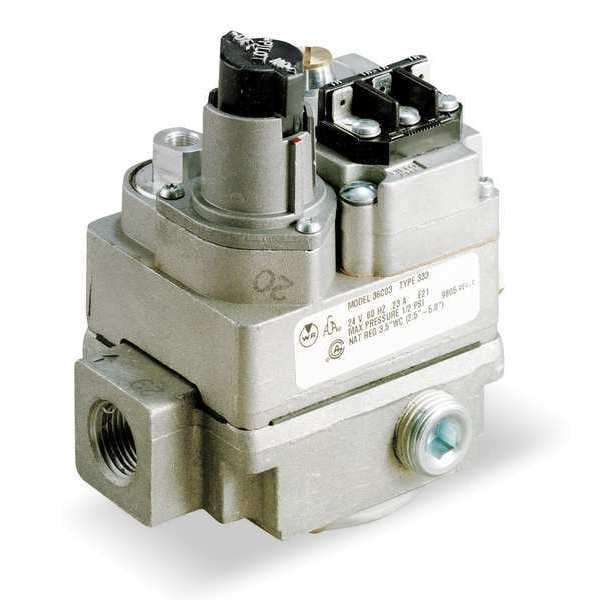

The Carrier 36C03-433 is a fast-opening gas valve for natural gas or LP systems with a standing pilot ignition. This type of valve controls the flow of gas to the burner, regulating pressure and shutting off the gas supply when the pilot is not lit. It has a 280,000 BtuH capacity, operates at 24 V, and draws 0.23 A, with 3/4-inch inlet and outlet ports.
