- HP: 1/2
- Phase - Pumps: 1
- Body Material: Cast Iron
- Base Material: Cast Iron
- Max. Diameter Solids: 2 in
- Diameter: 13-1/16"
Specifications
| Part Number | 267-0001 |
| Brand | Zoeller |
| HP | 1/2 |
| Phase - Pumps | 1 |
| Switch Actuation | Vertical Float |
| Body Material | Cast Iron |
| Base Material | Cast Iron |
| Max. Diameter Solids | 2 in |
| Max. Dia. Solids | 2" |
| Cord Length | 10 ft |
| Cord Length - Pumps | 10 ft. |
| Diameter | 13-1/16" |
| Manufacturers Warranty Length | 3 yr |
| Height | 14-9/32" |
| Min. Sump Pit Dia. | 18 in |
| Discharge Dia. | 2 in |
| Body Dia. | 13 1/16 in |
| Overall Height | 14 1/4 in |
| Sump Pit Diameter - Minimum | 18 in |
| Solids Diameter - Maximum | 2 in |
| Body Diameter | 13 1/8 in |
| Discharge Diameter | 2 in |
| Width at Widest Point | 13 1/8 in |
| Flow Rate @ 10 Ft. of Head | 85 gpm |
| Max. Head | 21.5 ft |
| Impeller Material | Thermoplastic |
| Phase | Single |
| Amps | 10.40 A |
| Shaft Seal | Carbon/Ceramic |
| Pump Body Material | Cast Iron |
| Agency Compliance | CSA Certified, UL Listed |
| Voltage | 115 |
| Thermal Protection | Yes |
| Item - Sewage Pumps | Submersible Sewage Pump |
| Amps - Pumps | 10.40 |
| Impeller Material - Pumps | Polypropylene |
| Shaft Seal Material - Pumps | Carbon, Ceramic |
| Max. Liquid Temp. | 130 Degrees F |
| Discharge NPT | 2" |
| GPM of Water @ 15 Ft. of Head | 50 |
| Item | Sewage Ejector Pump |
| Motor RPM | 1725 |
| Switch Type | Vertical |
| Bearing Type | Oil Lubricated |
| Max. Head - Pumps | 21 ft. |
| Voltage - Pumps | 120VAC |
| GPM of Water @ 5 Ft. of Head | 128 |
| GPM of Water @ 10 Ft. of Head | 89 |
| Pump Type | Automatic |
| Motor Type | Hermetically-Sealed, Oil-Filled |
| Housing Material | Cast iron |
| Input Phase AC | 1 |
| Switch Type - Pumps | Vertical |
| GPM of Water @ 20 Ft. of Head | 10 |
| Discharge Standard | NPT |
| Duty Cycle | Continuous |
| Off Point | 4 in |
| RPM | 1,725 RPM |
| Discharge | 2 in FNPT |
| Switch Electrical Connection | Integral |
| Flow Rate @ 20 Ft. of Head | 10 gpm |
| On Point | 12 in |
| Discharge Gender | Female |
| Flow Rate @ 15 Ft. of Head | 45 gpm |
| Rated Voltage | 115V AC |
| Standards | CSA Certified, UL Listed |
| Type | Automatic |
| Current | 10.40 A |
| Series | Model M267 |
| Rotation Speed - Maximum | 1,725 RPM |
| Volute Material | Cast Iron |
| For Media Type | Sewage Water |
| Shaft Seal Type | Single Mechanical |
| Requires Control Panel | No Control Panel Required |
| Motor Housing Material | Cast Iron |
| Frequency | 60 Hz |
| Flow Rate @ 10 ft of Head | 85 gpm |
| Liquid Temperature - Maximum | 130 Degrees F |
| Hazardous Location Class | Not Rated |
| Feet of Head - Maximum | 21.5 ft |
| Shaft Seal Material | Carbon/Ceramic |
| Horsepower | 1/2 hp |
| Discharge Orientation | Vertical |
| Power Source | Corded Electric |
Description

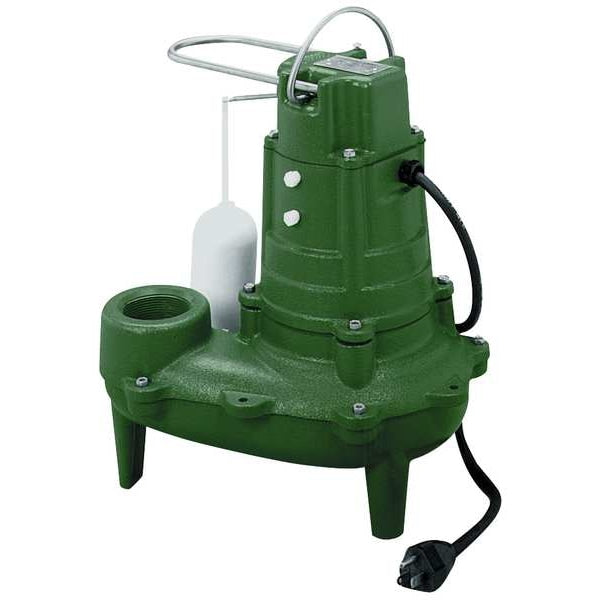

The Zoeller 267-0001 is a 1/2 HP condensate pump with a cast iron body and thermoplastic impeller. This sewage ejector pump moves wastewater, operating at 115V AC, single-phase, and 10.40 A, with a flow rate of 85 gpm at 10 feet of head. It is used with the M267 115V/1Ph/Ccsaus system.
