- Body Material: Brass
- Actuator Control Signal: Floating
- Actuator Cover Material: Polycarbonate; ABS
- Fluid Temperature - Minimum: 35 Degrees F
- Port Connection Size: 1/2 in
- Stem Material: Stainless Steel
Specifications
| Part Number | 259-02032 |
| Brand | Siemens |
| Body Material | Brass |
| Actuator Control Signal | Floating |
| Coefficient of Volume (Cv) | 0.63 |
| Actuator Cover Material | Polycarbonate; ABS |
| Fluid Temperature - Minimum | 35 Degrees F |
| Port Connection Size | 1/2 in |
| Overall Length | 2 3/4 in |
| Item | Hydronic Zone Valve |
| Port Connection Type | NPT |
| Application | Fan Coils, Unit Conditioners |
| Standards | ANSI Class IV |
| Port Connection Gender | Female |
| Actuator Type | Electric |
| Product Type | Zone Valve |
| Stem Material | Stainless Steel |
| Actuator Return Action | Non-Spring Return |
| Body Pattern | Two-Way |
| Valve Action | Normally Open |
| Operating Temperature - Minimum | 34 Degrees F |
| Fluid Temperature - Maximum | 250 Degrees F |
| Close-Off Pressure | 95 psi |
| Installation Orientation | Horizontal |
| Operating Temperature - Maximum | 122 Degrees F |
| Spring Action | Non-Spring Return |
| Gasket/Plug Material | Ethylene Propylene |
| Actuator Voltage | 24V AC |
| For Media | Steam, Water, Water-Glycol Solution to 50% |
| Includes Actuator | Actuator Included |
| Valve Type | Globe |
| Frequency | 50/60 Hz |
Description

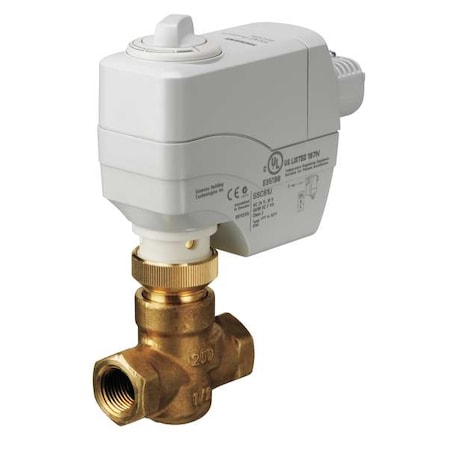

The Siemens 259-02032 is a hydronic zone valve actuator. This open-valve actuator controls fluid flow in a hydronic system, operating with a floating control signal. It is constructed with a brass body and a polycarbonate/ABS cover, and is used with fan coils and unit conditioners.
