- Body Material: Brass
- Valve Body Material: Bronze
- Max. Pressure (PSI): 15 psi
- Port Connection Size: 1/2 in
- Differential Pressure (PSI): 25 psi
- Stem Material: Stainless Steel
Specifications
| Part Number | 258-02069 |
| Brand | Siemens |
| Body Material | Brass |
| Overall Width | 2 in |
| Valve Body Material | Bronze |
| Max. Pressure (PSI) | 15 psi |
| Function | Used to Provide Pneumatic Proportional Control of Water, Steam and Ethylene Glycol Solutions (Up to 50 Percent) |
| Port Connection Size | 1/2 in |
| Item | Pneumatic Control Valve |
| Spring Range (PSI) | 8-13 |
| Differential Pressure (PSI) | 25 psi |
| Close Off Rating @ Main PSI | 50 @ 0 |
| Features | Direct Coupled, Allows Easy Installation, Hole Type Plug Provides Quieter Operation |
| Type | Globe |
| Pipe | 1/2 NPT |
| Cv | 4 |
| Valve Type | 3-Way |
| Application | Chilled/Hot Water Control |
| Stem Material | Stainless Steel |
| Operating Temperature - Maximum | 250 Degrees F |
| Close-Off Pressure | 50 psi |
| Port Connection Gender | Female |
| Fluid Temperature - Maximum | 250 Degrees F |
| Includes Actuator | Actuator Included |
| Operating Temperature - Minimum | 35 Degrees F |
| Actuator Control Pressure - Maximum | 13 psi |
| Body Pattern | Three-Way |
| Actuator Return Action | Spring Return |
| Bypass Port Coefficient of Volume (Cv) | 4 |
| Actuator Control Pressure - Minimum | 8 psi |
| Coefficient of Volume (Cv) | 4 |
| Actuator Type | Pneumatic |
| Port Connection Type | NPT |
| Valve Action | Normally Closed, Normally Open |
| Fluid Temperature - Minimum | 35 Degrees F |
| Spring Action | Spring Return |
Description

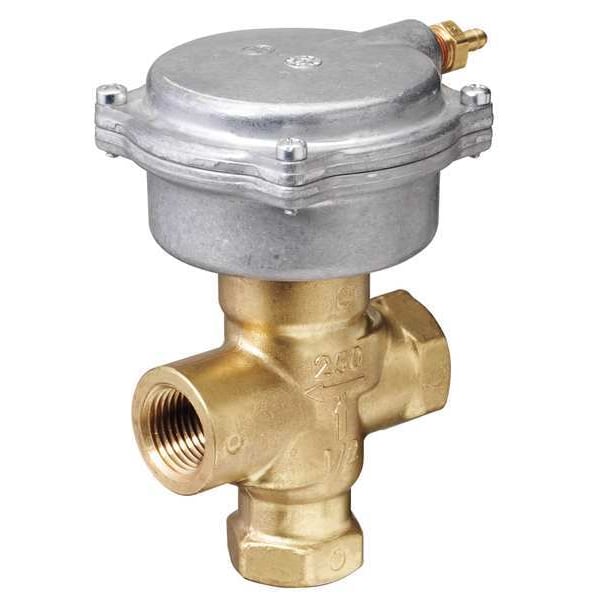

The Siemens 258-02069 is a pneumatic control valve with a bronze body. This type of valve modulates the flow of air or fluid in response to a pneumatic signal. It features a direct-coupled design with a hole-type plug for quieter operation, has a maximum pressure rating of 15 psi, and a close-off rating of 50 @ 0 psi.
