- Refrigerant Compatibility: R-22, R-404A, R-410A
- Vacuum Port Size: 1/4 in
- Manifold Port Connection Size: 1/4 in
- Gauge Diameter: 3 1/8 in
- Vacuum Port Connection Size: 1/4 in
- Material: Aluminum
Specifications
| Part Number | 24233 |
| Brand | Reznor |
| Number of Valves | 2 |
| Refrigerant Compatibility | R-22, R-404A, R-410A |
| Number of Hoses | 3 |
| Vacuum Port Size | 1/4 in |
| Includes | 60 in High Pressure Color Coded Hose Set |
| Hose Length | 5 ft |
| Manifold Port Connection Size | 1/4 in |
| Overall Depth | 13 in |
| Gauge Diameter | 3 1/8 in |
| Overall Width | 4 in |
| Vacuum Port Connection Size | 1/4 in |
| Overall Height | 9 1/4 in |
| Item | Manifold Gauge Kit |
| Features | Free Floating O-Ring Sealing System for Faster Evacuation/Charging, Soft Grip Rubber Hand Wheels Reduce Turning to Open/Close, Hose Holder Fittings Located on the Back for Easier Connection for Storage, 3-1/8 in Glow-in-the-Dark Gauges for Easy Viewing |
| Gauges High Side Red | 0 to 800 psi |
| Material | Aluminum |
| Gauges Low Side Blue | 30 in Hg to 500 psi |
| Gauge Accuracy | +/-3-2-3% |
| Product Type | Manifold Gauge Kit |
| For Use With | R-22, R-404A, R-410A |
| Type | Aluminum |
| Warranty | 1 yr |
| Includes Vacuum Port | Vacuum Port Included |
| Display Illumination | Glow-in-the-Dark |
| Pressure Resolution | 1 psi |
| Includes Sightglass | Sightglass Included |
| Series | ZEPPELIN |
| Response Time | Instantaneous |
| Pressure Units Measured | in Hg, psi |
| Manifold Port Connection Gender | Male |
| Includes Gauge Boots | Boot Not Included |
| Calibration Certificate Type | Not Certified |
| Vacuum Port Connection Type | SAE |
| A2L Compatibility | A2L Compatible |
| Low Side Display Pressure - Maximum | 500 psi |
| Low Side Display Pressure - Minimum | 30 in Hg |
| Manifold Port Connection Thread Direction | Right-Hand |
| Body Material | Aluminum |
| High Side Display Pressure - Maximum | 800 psi |
| Accuracy | +/- 3-2-3% |
| Display Type | Analog |
| Manifold Port Connection Type | SAE |
| Vacuum Port Connection Thread Direction | Right-Hand |
| Gauge Type | High Side/Low Side |
| Temperature Resolution | 1 Degrees F |
| Temperature Units Measured | Degrees F |
| High Side Display Pressure - Minimum | 0 psi |
| Vacuum Port Connection Gender | Male |
| For Refrigerant Type | R-22, R-404A, R-410A |
| Hose Connection Thread Direction | Right-Hand |
Description

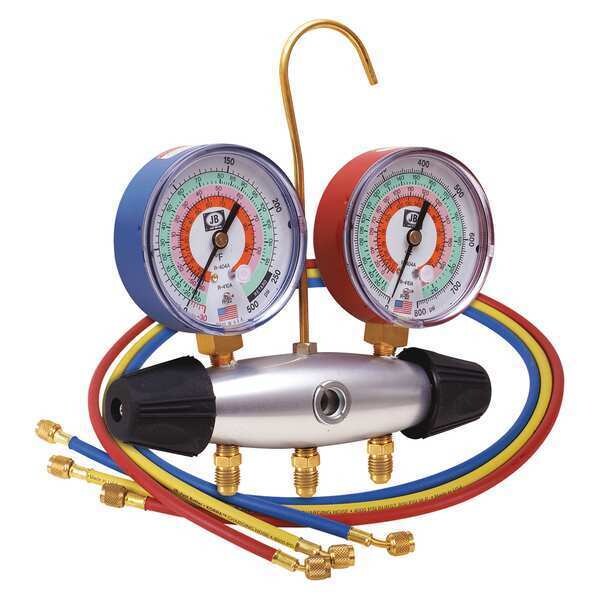

The Reznor 24233 is a two-valve manifold gauge kit made of aluminum. It functions as a manifold gauge set for HVAC/R service, featuring a free-floating O-ring sealing system for evacuation and charging, and is compatible with R-22, R-404A, and R-410A refrigerants. The kit includes a 60-inch high-pressure color-coded hose set and has 1/4-inch manifold and vacuum port connections.
