- Voltage: 115/240V AC
- Phase: Single
- Horsepower: 1/6 hp
- Inlet/Outlet Size: 2 in
- Compatible Intake Pipe Size: 2 in
- Compatible Discharge Pipe Size: 2 in
Specifications
| Part Number | 2400-60-3P |
| Brand | Taco |
| Voltage | 115/240V AC |
| Phase | Single |
| Horsepower | 1/6 hp |
| Inlet/Outlet Size | 2 in |
| Series | 2400-60 |
| Face to Face Dimension | 8 1/2 in |
| Overall Width | 5.18 in |
| Overall Length | 7.88 in |
| Manufacturer Warranty Length | 3 yr |
| Compatible Intake Pipe Size | 2 in |
| Compatible Discharge Pipe Size | 2 in |
| For Inlet Pipe Diameter | 2 in |
| For Discharge Pipe Diameter | 2 in |
| Item | Hydronic Circulating Pump |
| Pump Type | Standard |
| Number of Speeds | 1 |
| Max. GPM @ Head | 84 gpm @ 5 ft |
| Maximum Feet of Head | 15 ft |
| Min. GPM @ Head | 2 gpm @ 15 ft |
| Connection Type | Flange |
| Shaft Material | Stainless Steel |
| Compliance | AB1953, UL |
| Thermal Protection | yes |
| Standards | NSF, UL-CUS |
| Mechanical Seal | Carbon/Silicon Carbide |
| Loop Configuration | Closed |
| Includes | Flange Gaskets |
| Drive Type | Direct |
| Features | Compact, High Performance, Mechanical Seal, Permanently Lubricated Ball Bearings |
| Pump Mount | In Line |
| Shut-Off | 14 ft |
| Amps | 1.0/1.9 A |
| Impeller Material | Plastic |
| Maximum RPM | 3,450 RPM |
| Rotor Type | Dry |
| Flange or Union Included | No |
| Frequency | 60 Hz |
| Maximum Operating Pressure | 150 psi |
| Maximum Media Temperature | 225 Degrees F |
| Maximum Flow Rate @ 1 Feet of Head | 8 gpm |
| Body Gasket Material | EPDM |
| Series Family | 2400 |
| Nameplate Voltage | 115/230V AC |
| Pump Housing Material | Cast Iron |
| Minimum Media Temperature | 40 Degrees F |
| Maximum Flow Rate @ 15 Feet of Head | 8 gpm |
| For Use With Potable Systems | Yes |
| Maximum Flow Rate @ 10 Feet of Head | 40 gpm |
| Includes Volute | Volute Included |
| For Low Lead Compliance Level | EX |
| Feet of Head - Maximum | 15 ft |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Pump Casing Material | Cast Iron |
| Operating Pressure - Maximum | 150 psi |
| Includes Flange | No Flange Included |
| Media Temperature - Minimum | 40 Degrees F |
| Media Temperature - Maximum | 225 Degrees F |
| Flow Rate - Maximum | 53 gpm |
| Revolutions Per Minute - Maximum | 3,450 RPM |
| Full Load Current | 1.0/1.9 A |
| Connection Standard | Flange |
Description

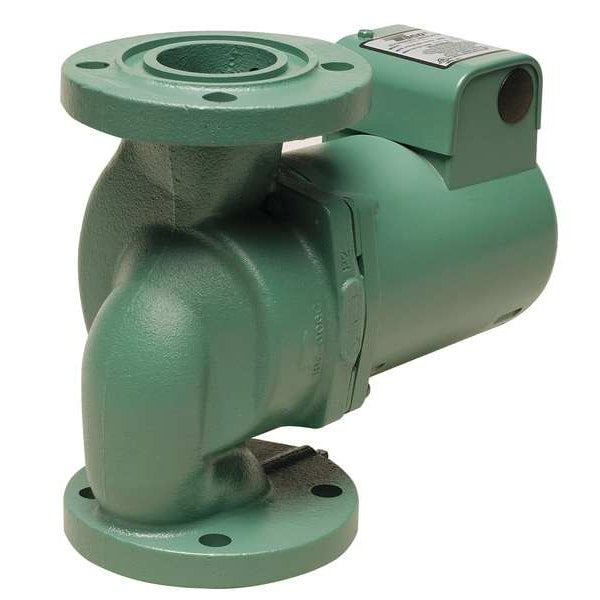

The Taco 2400-60-3P is a 1/6 hp hydronic circulating pump, part of the 2400-60 series. This standard pump moves water in a hydronic system, operating on single-phase 115/240V AC power. It is compatible with 2-inch intake and discharge pipe sizes.
