- Maximum Air Pressure: 30 psig
- Air Connection Outside Diameter: 1/4 in
- Temperature Sensitivity: 2.5 psig/ Degrees F
- Maximum Control Temperature: 85 Degrees F
- Minimum Control Temperature: 65 Degrees F
- Temperature Scale: Fahrenheit
Specifications
| Part Number | 2298-060 |
| Brand | Schneider Electric |
| Fits Brand | Schneider Electric |
| Application | Heat or Cool |
| Includes | Mounting Bracket, Mounting Hardware |
| Number of Dials | Single |
| Maximum Air Pressure | 30 psig |
| Sensor Length | 200 ft |
| Overall Width | 2 1/16 in |
| Overall Height | 2 1/16 in |
| Air Connection Outside Diameter | 1/4 in |
| Overall Depth | 1 3/8 in |
| Item | Temperature Control Unit |
| Temperature Sensitivity | 2.5 psig/ Degrees F |
| Fitting Connection | 1/4 in |
| Air Consumption | 29.4 scim (16 psig); 45 scim (25 psig) |
| Mounting Direction/Includes Cover | Horizontal/Vertical, No |
| Manual Indexing Switch | No |
| Maximum Control Temperature | 85 Degrees F |
| Number of Pipes | 3 |
| Number of Pipes/Air Flow Output | 3 Pipes, High Volume |
| Sensor Type | Bi-Metallic Spring |
| Mounting Direction | Horizontal, Vertical |
| Action | Direct and Reverse |
| Air Flow Output | High Volume |
| Minimum Control Temperature | 65 Degrees F |
| Compatible System Type | Pneumatic Valves and Damper Actuators |
| Pneumatic Thermostat Type | Remote Reset |
| Temperature Scale | Fahrenheit |
| Thermostat Action | Direct - 25 psig, Reverse - 16 psig |
| Pneumatic Thermostat Type/Indexing Switch | Remote Reset |
| Temperature Settings | Single Temperature |
| Temperature Control Range | 65 Degrees to 85 Degrees F |
| Differential Type | Fixed |
| Sensor Location | Remote |
Description

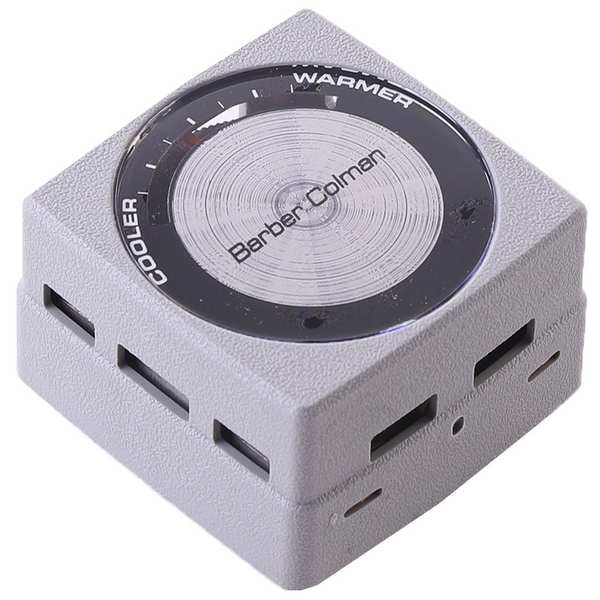

The Schneider Electric 2298-060 is a temperature control unit, specifically a unit ventilator stat with a 16# RA and 25# DA configuration. This type of part regulates temperature by sensing changes and adjusting air pressure, with a temperature sensitivity of 2.5 psig per degree Fahrenheit and a maximum control temperature of 85 degrees F. It is used for heat or cool applications, includes a mounting bracket and hardware, and has a 1/4 in fitting connection with a maximum air pressure rating of 30 psig.
