- Tube Fitting Material: Copper
- Tube Size: 3 in x 1-1/2 in x 3 in
- Pipe Size - Pipe Fitting: 3 in x 1-1/2 in x 3 in
- Pipe Size (Fittings): 3" x 1-1/2" x 3"
- Fitting Side A Copper Tube Size: 3 in
- Fitting Side C Copper Tube Size: 3 in
Specifications
| Part Number | 20727 |
| Brand | Viega |
| Tube Fitting Material | Copper |
| Specific Fitting Shape | Reducing Tee |
| Fitting Connection Type | Press x Press x Press |
| Tube Size | 3 in x 1-1/2 in x 3 in |
| Pipe Size - Pipe Fitting | 3 in x 1-1/2 in x 3 in |
| Pipe Size (Fittings) | 3" x 1-1/2" x 3" |
| Fitting Side A Copper Tube Size | 3 in |
| Overall Length | 9 3/16 in |
| Fitting Side C Copper Tube Size | 3 in |
| Fitting Side B Copper Tube Size | 1 1/2 in |
| Fitting Side 3 Copper Tube Size | 3 in |
| Fitting Side 2 Copper Tube Size | 1 1/2 in |
| Fitting Side 1 Copper Tube Size | 3 in |
| Item | Crimp Tee Fitting |
| Basic Pipe Fitting Material | Metal |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Standards | ASTM B75, ASTM B88 |
| Basic Pipe Fitting Shape | Tee |
| Pipe Fitting Connection Type | Press x Press x Press |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Specific Pipe Fitting Shape | Tee |
| Max. Pressure | 200 psi |
| Fitting Material | Copper |
| Maximum Operating Temperature | 250 Degrees F |
| Fitting Side B Connection Type | Press-Fit |
| Application | Potable Water |
| Fitting Side A Connection Type | Press-Fit |
| Fitting Shape | Tee |
| Maximum Operating Pressure | 200 psi |
| Compatible Tool Brand | Viega |
| O-Ring Material | EPDM |
| Fitting Side C Connection Type | Press-Fit |
| Minimum Operating Temperature | 0 Degrees F |
| Fitting Side 2 Connection Type | Press-fit |
| Fitting Side 3 Connection Type | Press-fit |
| For Media Type | Potable Water |
| Operating Temperature - Maximum | 250 Degrees F |
| Operating Temperature - Minimum | 0 Degrees F |
| Operating Pressure - Maximum | 200 psi |
| Fitting Side 1 Connection Type | Press-fit |
| Connector Type | Reducer |
| Includes Center Stop | Dimple Center Stop |
Description

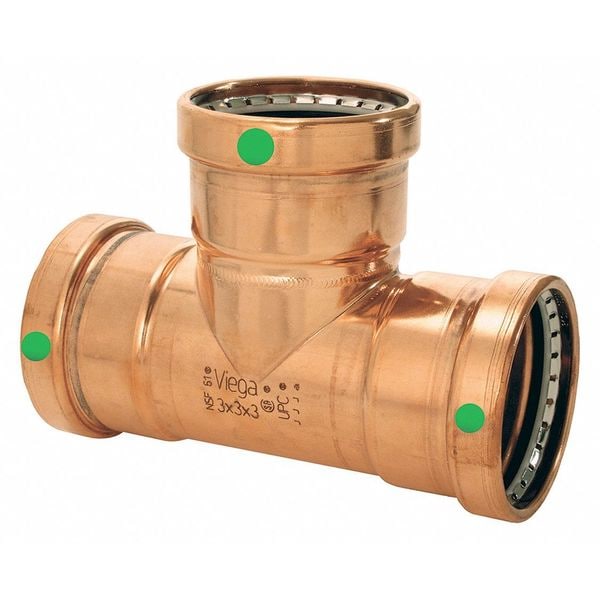

The Viega 20727 is a ProPress XL crimp tee fitting made of copper. This fitting connects three pipe branches using a press-connect method. It is rated for a maximum pressure of 200 psi and a temperature range of 0 to 250 degrees Fahrenheit, meeting ASTM B75 and B88 standards.
