- Process Connection Size: 1/8 in
- Nominal Dial Size: 4 in
- Differential Gauge Connection Size: 1/8 in
- Gauge Nominal Dial Size: 4 in
- Case Diameter: 4 3/4 in
- Bolt Circle Diameter: 4.125 in
Specifications
| Part Number | 2008 |
| Brand | Dwyer Instruments |
| Accuracy | +/-2.00% |
| Process Connection Type | NPT |
| Process Connection Size | 1/8 in |
| Series | 2000 |
| Process Connection Gender | Female |
| Nominal Dial Size | 4 in |
| Manufacturers Warranty Length | 1 yr |
| Differential Gauge Connection Size | 1/8 in |
| Gauge Nominal Dial Size | 4 in |
| Case Depth | 1.687 in |
| Manufacturer Warranty Length | 5 yr |
| Case Diameter | 4 3/4 in |
| Bolt Circle Diameter | 4.125 in |
| Item | Differential Pressure Gauge |
| Application | Flow Measurement, Vacuum Applications, Clean Rooms, HVAC/R, Fan Pressure Indication, Filtration Monitoring |
| Process Connection Location | Back, Side |
| Housing Material | Die Cast Aluminum |
| Pressure Range | 0 to 8 in wc |
| Sensor Type | Diaphragm |
| Gauge Connection Location | Back and Side |
| Includes | Instructions, Three Mounting Adapters with Screws, Two 1/8 in NPT Plugs, Two 1/8 in NPT to 3/16 in ID Rubber Tubing Adapters |
| Scale Type | Pressure |
| Gauge Operating Temp. Range | 20 Degrees to 140 Degrees F |
| Body Material | Die Cast Aluminum |
| Differential Gauge Connection Type | FNPT |
| Differential Pressure Range Units | in wc |
| Dial Material | Die Cast Aluminum |
| Gauge Primary Range Smallest Graduation | 0.2 |
| Gauge Accuracy | +/-2% |
| Rated Total Pressure | -20 in Hg to 15 psi |
| Basic Gauge Case Material | Metal |
| Differential Pressure Range Value | 0 to 8 |
| Differential Pressure Gauge Type | Differential Pressure Gauge |
| Differential Pressure Range | 0 to 8 in wc |
| Case Color | Gray |
| Standards | EU Directive 2011/65/EU (RoHS II) |
| Case Material | Aluminum |
| Includes Calibration Certificate | No |
| Pressure Gauge Type | Differential Pressure Gauge |
| Sensor Material | Silicone Rubber |
| Compatible Process Media | Cleanroom |
| Gauge Case Material | Aluminum |
| Accuracy Details | +/-2% (-HA model +/-1) of FS ( +/-3% (-HA +/-1.5%) on -0, -100PA, -125PA, -10MM and +/-4% (-HA +/-2%) on -00, -60PA, -6MM ranges), throughout range at 70 Degrees F (21.1 Degrees C). |
| Bezel Material | Die Cast Aluminum |
| Case Shape | Round |
| Non-Sparking | No |
| IP/NEMA Rating | IP67 |
| Maximum Working Static Pressure | 80 psig |
| Ambient Operating Temperature Range | 20 Degrees to 140 Degrees F |
| Pointer Material | Aluminum |
| Blowout Safety Back | Yes |
| Adjustable Set Points | No |
| Pointer Characteristics | Red Tipped Pointer of Heat Treated Aluminum Tubing is easy to see |
| Includes Vent Plug | Yes |
| Hazardous Location Rating | Not Rated |
| Case Finish | Die Cast |
| Removable Bezel | No |
| Over-Pressure Limit | 1.72 bar |
| Dial Face Material | Plastic |
| Includes Mounting Hardware | Yes |
| Mounting Hardware Included | Flange |
| Bezel Mounting Type | Flush |
| Mounting Orientation | Upright Only |
| Panel Mount Characteristics | 3 L Dia Holes on E Dia Bolt Circle |
| Dial Color | White |
| Panel-Mountable | Yes |
| Case Construction | Corrosion Resistant |
| Pressure Measurement - Minimum | 0 in wc |
| Operating Temperature - Maximum | 140 Degrees F |
| Pressure Measurement - Maximum | 8 in wc |
| Number of Switches | 0 |
| IP Rating | IP67 |
| Operating Temperature - Minimum | 20 Degrees F |
| Working Static Pressure - Maximum | 80 psig |
Description

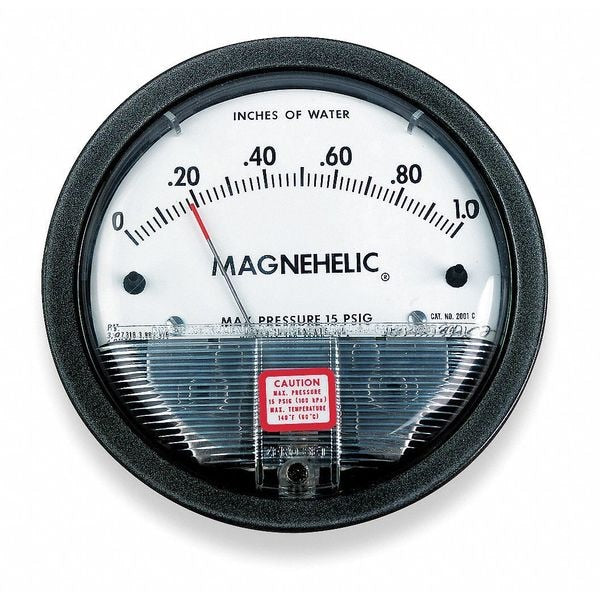

The Dwyer Instruments 2008 is a Series 2000 Magnehelic differential pressure gauge. This gauge measures the difference in pressure between two points, indicating pressure drop or flow. It is used for flow measurement, vacuum applications, clean rooms, HVAC/R, fan pressure indication, and filtration monitoring. The gauge has a range of 0-8.0" w.c. with minor divisions of .20.
