- Process Connection Size: 1/8 in
- Nominal Dial Size: 4 in
- Gauge Nominal Dial Size: 4 1/2 in
- Differential Gauge Connection Size: 1/8 in
- Bolt Circle Diameter: 4.125 in
- Case Diameter: 4 3/4 in
Specifications
| Part Number | 2002 |
| Brand | Dwyer Instruments |
| Accuracy | +/-2.00% |
| Process Connection Type | NPT |
| Process Connection Size | 1/8 in |
| Series | 2000 |
| Process Connection Gender | Female |
| Nominal Dial Size | 4 in |
| Gauge Nominal Dial Size | 4 1/2 in |
| Differential Gauge Connection Size | 1/8 in |
| Manufacturers Warranty Length | 1 yr |
| Bolt Circle Diameter | 4.125 in |
| Case Diameter | 4 3/4 in |
| Case Depth | 1.687 in |
| Manufacturer Warranty Length | 5 yr |
| Item | Differential Pressure Gauge |
| Application | Flow Measurement, Vacuum Applications, Clean Rooms, HVAC/R, Fan Pressure Indication, Filtration Monitoring |
| Process Connection Location | Back, Side |
| Housing Material | Die Cast Aluminum |
| Pressure Range | 0 to 2 in wc |
| Sensor Type | Diaphragm |
| Rated Total Pressure | -20 in Hg to 15 psi |
| Differential Gauge Connection Type | FNPT |
| Gauge Accuracy | +/-2% |
| Body Material | Die Cast Aluminum |
| Scale Type | Pressure |
| Basic Gauge Case Material | Metal |
| Differential Pressure Range Units | in wc |
| Gauge Primary Range Smallest Graduation | 0.05 |
| Differential Pressure Range | 0 to 2 in wc |
| Gauge Connection Location | Back and Side |
| Gauge Operating Temp. Range | 20 Degrees to 140 Degrees F |
| Differential Pressure Gauge Type | Differential Pressure Gauge |
| Includes | Instructions, Three Mounting Adapters with Screws, Two 1/8 in NPT Plugs, Two 1/8 in NPT to 3/16 in ID Rubber Tubing Adapters |
| Dial Material | Die Cast Aluminum |
| Differential Pressure Range Value | 0 to 2 |
| Case Material | Aluminum |
| Standards | EU Directive 2011/65/EU (RoHS II) |
| Case Color | Gray |
| Panel Mount Characteristics | 3 L Dia Holes on E Dia Bolt Circle |
| Mounting Hardware Included | Flange |
| Dial Color | White |
| Ambient Operating Temperature Range | 20 Degrees to 140 Degrees F |
| Case Finish | Die Cast |
| Bezel Mounting Type | Flush |
| Pointer Material | Aluminum |
| Bezel Material | Die Cast Aluminum |
| Dial Face Material | Plastic |
| Pointer Characteristics | Red Tipped Pointer of Heat Treated Aluminum Tubing is easy to see |
| Mounting Orientation | Upright Only |
| Removable Bezel | No |
| Compatible Process Media | Cleanroom |
| Non-Sparking | No |
| Over-Pressure Limit | 1.72 bar |
| Case Shape | Round |
| Blowout Safety Back | Yes |
| Includes Calibration Certificate | No |
| Sensor Material | Silicone Rubber |
| Pressure Gauge Type | Differential Pressure Gauge |
| Includes Mounting Hardware | Yes |
| IP/NEMA Rating | IP67 |
| Accuracy Details | +/-2% (-HA model +/-1) of FS ( +/-3% (-HA +/-1.5%) on -0, -100PA, -125PA, -10MM and +/-4% (-HA +/-2%) on -00, -60PA, -6MM ranges), throughout range at 70 Degrees F (21.1 Degrees C). |
| Includes Vent Plug | Yes |
| Gauge Case Material | Aluminum |
| Hazardous Location Rating | Not Rated |
| Maximum Working Static Pressure | 80 psig |
| Case Construction | Corrosion Resistant |
| Panel-Mountable | Yes |
| Adjustable Set Points | No |
| Pressure Measurement - Maximum | 2 in wc |
| Pressure Measurement - Minimum | 0 in wc |
| Operating Temperature - Minimum | 20 Degrees F |
| Number of Switches | 0 |
| IP Rating | IP67 |
| Operating Temperature - Maximum | 140 Degrees F |
| Working Static Pressure - Maximum | 80 psig |
Description

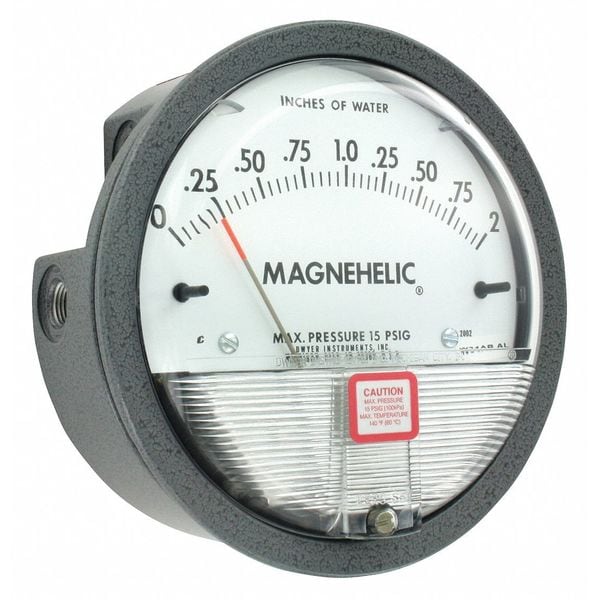

The Dwyer Instruments 2002 is a Series 2000 Magnehelic differential pressure gauge. This gauge measures the difference in pressure between two points, indicating pressure drops or levels in air and compatible gases. It is used for flow measurement, vacuum applications, clean rooms, HVAC/R, fan pressure indication, and filtration monitoring, with a range of 0-2.0" w.c. and minor divisions of 0.05.
