- NFPA: Tie-Rod
- Bore Dia.: 2 in
- Stroke Length: 10 in
- Rod Dia.: 1 in
- Retracted Length: 16 in
- Port Size: 1/2 in NPT
Specifications
| Part Number | 1HHV3B2001000M |
| Brand | Miller Fluid Power |
| Item | Hydraulic Cylinder |
| NFPA | Tie-Rod |
| Bore Dia. | 2 in |
| Stroke Length | 10 in |
| Rod Dia. | 1 in |
| Retracted Length | 16 in |
| Port Size | 1/2 in NPT |
| Extended Length | 26 in |
| Max. Pressure | 2,500 psi |
| Temp. | Range -10 to 165 F |
| Piston Material | Steel |
| Piston | Rod Material Stainless Steel |
| Ring Material | Polyurethane |
| Tube Material | Steel |
| Body Material | Steel |
| Tie Rods | Steel |
| Finish | Black Painted |
| Standards | NFPA |
| Includes | None |
| Features | Wear Band Material Non-Metallic |
Description

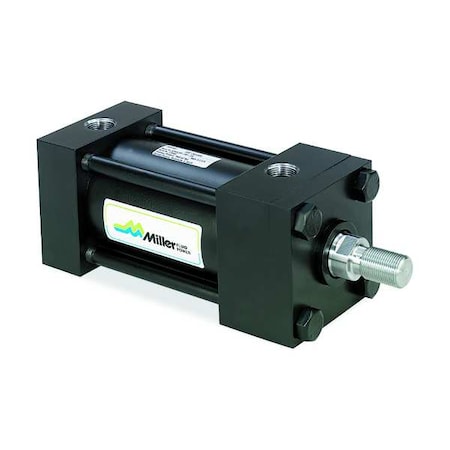

The Miller Fluid Power 1HHV3B2001000M is an NFPA tie-rod hydraulic cylinder with a 2 in bore diameter, 10 in stroke length, and 1 in rod diameter. It has a retracted length of 16 in, an extended length of 26 in, and 1/2 in NPT ports. This cylinder is rated for a maximum pressure of 2,500 psi and a temperature range of -10 to 165 F. The piston and tube are steel, the piston rod is stainless steel, and the ring material is polyurethane.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
