- Voltage: 208-240/460V AC
- Phase: Three
- Horsepower: 3/4 hp
- Inlet/Outlet Size: 2 in
- Compatible Intake Pipe Size: 2 in
- Compatible Discharge Pipe Size: 2 in
Specifications
| Part Number | 1EF056LF |
| Brand | Bell & Gossett |
| Voltage | 208-240/460V AC |
| Phase | Three |
| Horsepower | 3/4 hp |
| Series | BE611T |
| Inlet/Outlet Size | 2 in |
| Face to Face Dimension | 11 1/2 in |
| Overall Width | 8 in |
| Overall Length | 21.75 in |
| Overall Height | 11.5 in |
| Compatible Intake Pipe Size | 2 in |
| Compatible Discharge Pipe Size | 2 in |
| Manufacturer Warranty Length | 3 yr |
| For Inlet Pipe Diameter | 2 in |
| For Discharge Pipe Diameter | 2 in |
| Item | Circulating Pump |
| Pump Type | 3-Piece |
| Number of Speeds | 1 |
| Max. GPM @ Head | 130 gpm @ 15 ft |
| Maximum Feet of Head | 24 ft |
| Min. GPM @ Head | 25 gpm @ 24 ft |
| Connection Type | Flange |
| Compliance | CSA, NSF-372 |
| Standards | ISO 9001 |
| Thermal Protection | No |
| Features | Dimensional Interchangeability with Legacy Series 60, Leading Hydraulic Efficiency, Upgraded Unitized Mechanical Seal |
| Shut-Off | 24 ft |
| Impeller Material | Bronze |
| Best Efficiency GPM @ Head | 85 gpm @ 21 ft |
| Mechanical Seal | EPR/Carbon/Silicon Carbide |
| Shaft Material | Steel |
| Drive Type | Direct |
| Amps | 1.4/2.7/2.8 A |
| Loop Configuration | Closed |
| Pump Mount | In Line |
| Pump Housing Material | Bronze |
| Nameplate Voltage | 208-230/460V AC |
| Maximum Flow Rate @ 1 Feet of Head | 120 gpm |
| For Use With Potable Systems | Yes |
| Flange or Union Included | Yes |
| Body Gasket Material | Cellulose Fiber |
| Maximum Flow Rate @ 20 Feet of Head | 90 gpm |
| Series Family | E-60 |
| Maximum RPM | 1,750 RPM |
| Maximum Operating Pressure | 175 psi |
| Minimum Media Temperature | -10 Degrees F |
| Compatible Media Type | Water |
| Maximum Flow Rate @ 15 Feet of Head | 120 gpm |
| Maximum Media Temperature | 225 Degrees F |
| Maximum Flow Rate @ 10 Feet of Head | 155 gpm |
| Includes Volute | Volute Included |
| Includes Flange | Flange Included |
| Connection Standard | Flange |
| Media Temperature - Maximum | 225 Degrees F |
| Flow Rate - Maximum | 180 gpm |
| Revolutions Per Minute - Maximum | 1,750 RPM |
| Motor Enclosure Design | Open Drip Proof |
| Operating Pressure - Maximum | 175 psi |
| For Low Lead Compliance Level | CE |
| Full Load Current | 1.4/2.7/2.8 A |
| Feet of Head - Maximum | 24 ft |
| Media Temperature - Minimum | -10 Degrees F |
| Pump Casing Material | Bronze |
Description

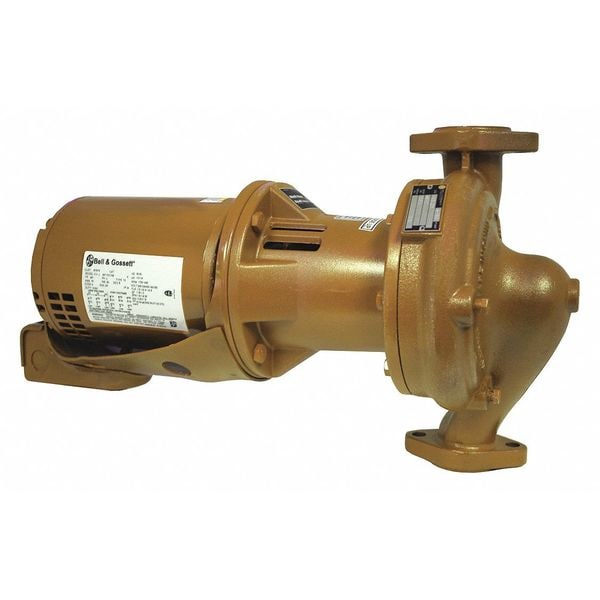

The Bell & Gossett 1EF056LF is a 3-piece circulating pump from the BE611T series. This pump circulates fluid in a closed-loop system, powered by a 3/4 hp motor operating at 208-240/460V AC, three-phase. It features flange connections and is compatible with 2-inch intake and discharge pipe sizes.
