- Voltage: 115/208-240V AC
- Phase: Single
- Horsepower: 1/2 hp
- Inlet/Outlet Size: 1-1/2 in
- Compatible Intake Pipe Size: 1 1/2 in
- For Inlet Pipe Diameter: 1 1/2 in
Specifications
| Part Number | 1EF022LF |
| Brand | Bell & Gossett |
| Voltage | 115/208-240V AC |
| Phase | Single |
| Horsepower | 1/2 hp |
| Inlet/Outlet Size | 1-1/2 in |
| Series | E608S |
| Face to Face Dimension | 11 1/2 in |
| Overall Width | 7.88 in |
| Overall Length | 21.5 in |
| Overall Height | 11.5 in |
| Manufacturer Warranty Length | 3 yr |
| Compatible Intake Pipe Size | 1 1/2 in |
| For Inlet Pipe Diameter | 1 1/2 in |
| Item | Hydronic Circulating Pump |
| Pump Type | 3-Piece |
| Number of Speeds | 1 |
| Max. GPM @ Head | 80 gpm @ 13 ft |
| Maximum Feet of Head | 24 ft |
| Min. GPM @ Head | 15 gpm @ 24 ft |
| Connection Type | Flange |
| Features | Dimensional Interchangeability with Legacy Series 60, Four Bolt Configuration, Leading Hydraulic Efficiency, Upgraded Unitized Mechanical Seal |
| Impeller Material | Bronze |
| Pump Mount | In Line |
| Amps | 2.5/5.0 A |
| Best Efficiency GPM @ Head | 52 gpm @ 20 ft |
| Standards | ISO 9001 |
| Drive Type | Direct |
| Thermal Protection | yes |
| Compliance | CSA, NSF-372 |
| Shaft Material | Steel |
| Shut-Off | 24 ft |
| Loop Configuration | Closed |
| Mechanical Seal | EPR/Carbon/Silicon Carbide |
| Maximum Operating Pressure | 175 psi |
| Compatible Media Type | Water |
| Maximum Flow Rate @ 20 Feet of Head | 52 gpm |
| Maximum Flow Rate @ 1 Feet of Head | 85 gpm |
| Maximum Flow Rate @ 15 Feet of Head | 85 gpm |
| Nameplate Voltage | 115/208 - 230V AC |
| For Use With Potable Systems | Yes |
| Minimum Media Temperature | -10 Degrees F |
| Maximum Media Temperature | 225 Degrees F |
| Maximum RPM | 1,750 RPM |
| Pump Housing Material | Cast Iron |
| Body Gasket Material | Cellulose Fiber |
| Series Family | E-60 |
| Flange or Union Included | Yes |
| Maximum Flow Rate @ 10 Feet of Head | 90 gpm |
| Connection Standard | Flange |
| For Low Lead Compliance Level | CE |
| Revolutions Per Minute - Maximum | 1,750 RPM |
| Feet of Head - Maximum | 24 ft |
| Includes Flange | Flange Included |
| Pump Casing Material | Cast Iron |
| Operating Pressure - Maximum | 175 psi |
| Flow Rate - Maximum | 110 gpm |
| Includes Volute | Volute Included |
| Media Temperature - Maximum | 225 Degrees F |
| Media Temperature - Minimum | -10 Degrees F |
| Motor Enclosure Design | Open Drip Proof |
| Full Load Current | 2.5/5.0 A |
Description

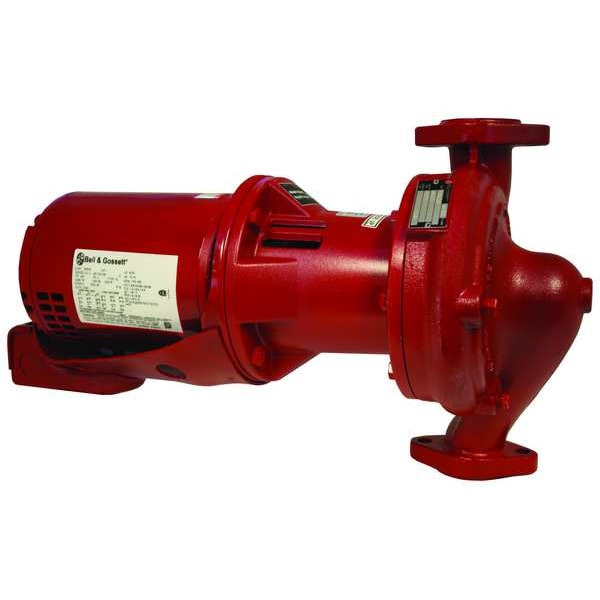

The Bell & Gossett 1EF022LF is a Series E608S hydronic circulating pump. This 3-piece pump circulates water in a hydronic system, powered by a 1/2 hp, single-phase motor rated for 115/208-240V AC and featuring a flange connection.
