- Voltage: 115V AC
- Phase: Single
- Horsepower: 1/6 hp
- Compatible Discharge Pipe Size: 2 in
- Compatible Intake Pipe Size: 2 in
- For Inlet Pipe Diameter: 2 in
Specifications
| Part Number | 1BL035LF |
| Brand | Bell & Gossett |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 1/6 hp |
| Series | PL |
| Pump Type | Standard |
| Compatible Discharge Pipe Size | 2 in |
| Face to Face Dimension | 8 1/2 in |
| Overall Width | 4.63 in |
| Overall Length | 9.94 in |
| Compatible Intake Pipe Size | 2 in |
| Overall Height | 8.5 in |
| Manufacturer Warranty Length | 1 yr |
| For Inlet Pipe Diameter | 2 in |
| For Discharge Pipe Diameter | 2 in |
| Item | Circulating Pump |
| Number of Speeds | 1 |
| Maximum Feet of Head | 15 ft |
| Connection Type | FNPT |
| Impeller Material | Plastic |
| Maximum Flow Rate @ 5 Feet of Head | 55 gpm |
| For Use With Potable Systems | Yes |
| Number of Flange Mounting Holes | 2 |
| Body Gasket Material | Carbon |
| Maximum Media Temperature | 250 Degrees F |
| Maximum Operating Pressure | 150 psi |
| Priming | Self-Priming |
| Maximum Flow Rate @ 10 Feet of Head | 50 gpm |
| Maximum Flow Rate @ 15 Feet of Head | 0 gpm |
| Compatible Media Type | Water |
| Pipe to Flange or Union Connection Type | FNPT |
| Pump Mounting Position | Horizontal, Vertical |
| Standards | ANSI 372, CSA Certified, NSF 372 |
| Nameplate Voltage | 115V AC |
| Motor Enclosure Design | Open Drip Proof |
| Maximum Flow Rate @ 1 Feet of Head | 68 gpm |
| Wetted Material | Carbon Steel, Silicon Carbide |
| Pump Housing Material | Bronze |
| Rotor Type | Wet |
| Frequency | 60 Hz |
| Electrical Connection Type | Hardwired |
| Maximum RPM | 3,400 RPM |
| Series Family | PL |
| Feet of Head - Maximum | 15 ft |
| For Low Lead Compliance Level | CE |
| Flow Rate - Maximum | 70 gpm |
| Operating Pressure - Maximum | 150 psi |
| Pump Casing Material | Bronze |
| Media Temperature - Minimum | 14 Degrees F |
| Connection Standard | FNPT |
| Media Temperature - Maximum | 250 Degrees F |
| Mounting Orientation | Horizontal, Vertical |
| Revolutions Per Minute - Maximum | 3,400 RPM |
| Includes Volute | Volute Included |
| NSF Certifications for Food and Drinking Water | NSF 372 |
Description

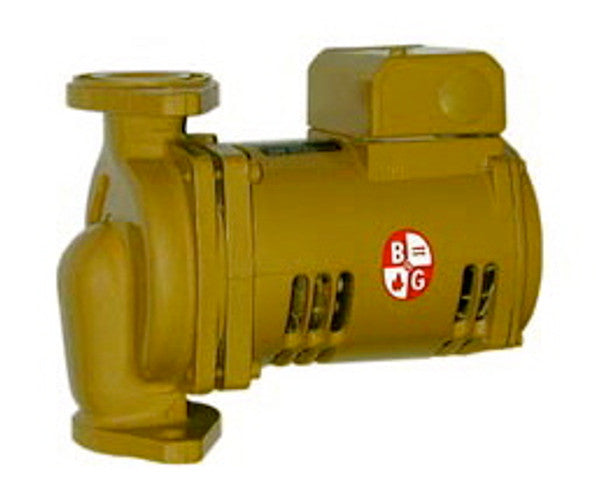

The Bell & Gossett 1BL035LF is a PL Series circulating pump. This pump circulates fluid in a hydronic system, powered by a 115V AC, single-phase, 1/6 hp motor.
