- Pressure Connection Type: 1/8 in FNPT
- Sample Line Connection Size: 1/8 in
- Mounting Hole Diameter: 3/16 in
- Pressure Type: Differential
- Input Voltage: 120 to 480V AC, 125V AC, 250V AC
- Pressure Setpoint Type: Adjustable
Specifications
| Part Number | 1910-1 |
| Brand | Dwyer Instruments |
| CAD Drawing | 2D Drawing (.pdf) |
| Action | Standard |
| Contact Form | SPDT |
| Pressure Connection Type | 1/8 in FNPT |
| Range | 0.4 to 1.6"wc |
| Factory On Setting | 0.4"wc |
| Sample Line Connection Size | 1/8 in |
| Mounting Hole Diameter | 3/16 in |
| Item | Pressure Switch |
| Factory Off Setting | 1.6"wc |
| Standards | CE Listed, CSA, FM, UL Listed |
| Process Connection | 1/8" female NPT. |
| Electrical Connection | Screw Terminals |
| Application | Frost and Ice Detection, Clogged or Dirty Filter Detection, Air Flow Control |
| Weight | 1 lb |
| Mounting Orientation | Vertical |
| Pressure Type | Differential |
| Product Type | Differential Pressure Switch |
| Input Voltage | 120 to 480V AC, 125V AC, 250V AC |
| Pressure Setpoint Type | Adjustable |
| Minimum Operating Temperature | -30 Degrees F |
| Mounting Hole Center to Center Distance | 6 13/16 in |
| Sample Line Connector Type | NPT |
| Maximum Operating Temperature | 180 Degrees F |
| Maximum Pressure Rating | 45 in wc |
| Maximum Differential Pressure Setting | 1.6 in wc |
| Number of Switches | 1 |
| Maximum Pressure Setting | 1.6 in wc |
| Minimum Pressure Setting | 0.4 in wc |
| Repeatability | ±3%. |
| Switch Type | Single-pole double-throw (SPDT). |
| Agency Approvals | CE, CSA, FM, UL. Optional EXPL Explosion-proof enclosure does not possess any agency approvals. |
| Temperature Limits | -30 to 180°F (-34 to 82.2°C). |
| Set Point Adjustment | Screw type inside conduit enclosure. |
| Service | Air and non-combustible, compatible gases. |
| CAD Available | Yes |
Description

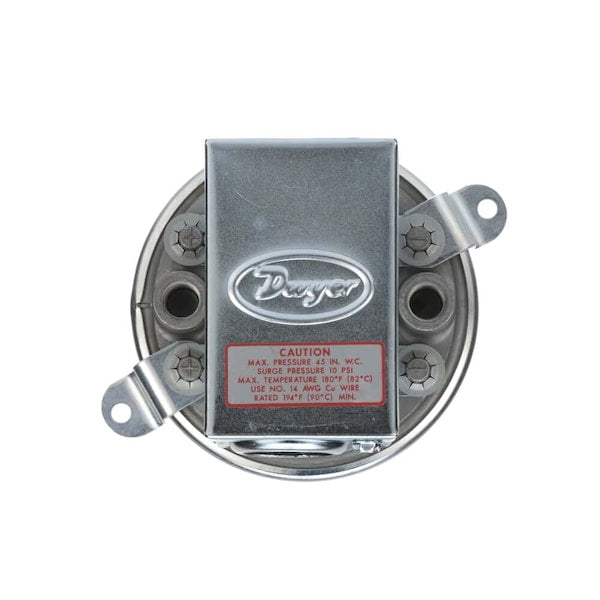

The Dwyer Instruments 1910-1 is a differential pressure switch with a 0.40 to 1.6 in H2O range and a SPDT switching function. It is used for frost and ice detection, clogged or dirty filter detection, and air flow control. The switch features a 1/8" FNPT process connection and is CE, CSA, FM, and UL Listed.
