- Control Air Pressure: 18 to 25 psi
- Air Connection Outside Diameter: 1/4 in
- Sensor Diameter: 3/8 in
- Temp. Control Range: 60 Degrees to 85 Degrees F
- Max. Ambient Temp.: 230 Degrees F
- Output Pressure Range: 3 to 15 psi
Specifications
| Part Number | 188-0030 |
| Brand | Century Motors |
| Action Type - Pneumatic Thermostats | Direct Acting and Reverse Acting |
| Control Air Pressure | 18 to 25 psi |
| Air Connections | Barbed fitting for 1/4 in and OD Plastic Tubing |
| Height | 2 5/16 in |
| Depth | 2 3/16 in |
| Sensing Bulb Length | 3 1/2 in |
| Capillary Length | 96 in |
| Sensing Bulb Dia. | 3/8 in |
| Air Connection Outside Diameter | 1/4 in |
| Overall Height | 2 5/16 in |
| Overall Depth | 2 3/16 in |
| Sensor Diameter | 3/8 in |
| Overall Width | 3 7/8 in |
| Item | Unit Mounted Thermostat |
| Temp. Control Range | 60 Degrees to 85 Degrees F |
| Max. Ambient Temp. | 230 Degrees F |
| Reverse Acting / Direct Acting | Direct Acting and Reverse Acting |
| Output Pressure Range | 3 to 15 psi |
| Max. Air Pressure | 30 psi |
| Includes | Universal Mounting Bracket |
| Element Type | Bulb |
| Air Consumption | 25 scfm |
| Sensor Type | Copper Bulb |
| Application | Heat or Cool |
| Control Type | Knob |
| Action Type | Direct Acting and Reverse Acting |
| Temperature Control Range | 60 Degrees to 85 Degrees F |
| Maximum Control Temperature | 85 Degrees F |
| Action | Direct and Reverse |
| Temperature Sensitivity | 1 to 5.25 psi per Degrees F |
| Air Restrictor Required | Yes |
| Air Flow Output | High Volume |
| Air Flow Capacity | 40 scim |
| Maximum Air Pressure | 30 psi |
| Fitting Connection | Barbed 1/4 in |
| Number of Pipes | 2 |
| Shape | Rectangle |
| Temperature Settings | Dual Temperature |
| Temperature Scale | Fahrenheit |
| Control Air Pressure Settings | 3 to 15 psi |
| Thermostat Action | Direct and Reverse |
| Pneumatic Thermostat Type | Liquid Filled-Bulb |
| Minimum Control Temperature | 60 Degrees F |
Description

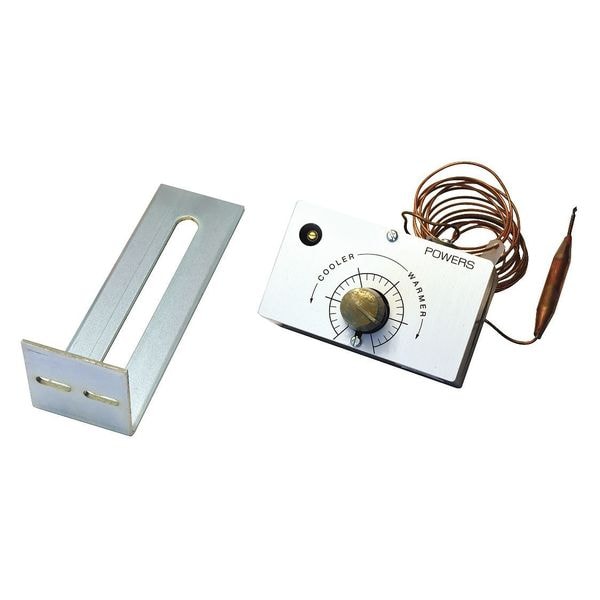

The Century Motors 188-0030 is a unit-mounted pneumatic thermostat. This type of sensor controls temperature by modulating air pressure, operating with a control air pressure of 18 to 25 psi and an output pressure range of 3 to 15 psi. It is direct acting and reverse acting, with a temperature control range of 60 to 85 degrees F and a maximum ambient temperature of 230 degrees F.
