- Voltage: 115V AC
- Phase: Single
- Horsepower: 2/5 hp
- Inlet/Outlet Size: 2 in
- Compatible Discharge Pipe Size: 2 in
- Compatible Intake Pipe Size: 2 in
Specifications
| Part Number | 182212-645 |
| Brand | Armstrong |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 2/5 hp |
| Inlet/Outlet Size | 2 in |
| Series | E30.2-2 |
| Face to Face Dimension | 8 1/2 in |
| Overall Length | 10.9 in |
| Overall Height | 8.5 in |
| Overall Width | 5.2 in |
| Compatible Discharge Pipe Size | 2 in |
| Manufacturer Warranty Length | 3 yr |
| Compatible Intake Pipe Size | 2 in |
| For Discharge Pipe Diameter | 2 in |
| For Inlet Pipe Diameter | 2 in |
| Item | Hydronic Circulating Pump |
| Pump Type | Standard |
| Number of Speeds | 1 |
| Max. GPM @ Head | 112 gpm @ 5 ft |
| Maximum Feet of Head | 22 ft |
| Min. GPM @ Head | 0 gpm @ 22 ft |
| Connection Type | Flange |
| Pump Mount | In Line |
| Impeller Material | Plastic |
| Mechanical Seal | Silicon Carbide Enviroseal Coupled with Viton(R) Elastomer |
| Includes | (2) Gaskets, Nuts and Bolts |
| Drive Type | Direct |
| Best Efficiency GPM @ Head | 60 gpm @ 17 ft |
| Features | Ball Bearing, In Line, Mechanical Seal |
| Shaft Material | Stainless Steel |
| Thermal Protection | yes |
| Amps | 4.1 A |
| Standards | UL Listed |
| Shut-Off | 22 ft |
| Compliance | cUL |
| Loop Configuration | Closed |
| Body Gasket Material | EPDM |
| Number of Intakes | 4 |
| Maximum Operating Pressure | 150 psi |
| Compatible Media Type | Water |
| Nameplate Voltage | 120V AC |
| Flange or Union Included | No |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Series Family | E.2 |
| Maximum Flow Rate @ 10 Feet of Head | 95 gpm |
| Maximum Flow Rate @ 1 Feet of Head | 128 gpm |
| For Use With Potable Systems | No |
| Minimum Media Temperature | 32 Degrees F |
| Frequency | 60 Hz |
| Maximum Flow Rate @ 15 Feet of Head | 74 gpm |
| Pump Housing Material | Cast Iron |
| Maximum RPM | 3,350 RPM |
| Maximum Media Temperature | 230 Degrees F |
| Maximum Flow Rate @ 20 Feet of Head | 42 gpm |
| Maximum Flow Rate @ 5 Feet of Head | 112 gpm |
| Number of Flange Mounting Holes | 4 |
| For Low Lead Compliance Level | CE |
| Pump Casing Material | Cast Iron |
| Includes Volute | No Volute Included |
| Revolutions Per Minute - Maximum | 3,350 RPM |
| Feet of Head - Maximum | 22 ft |
| Media Temperature - Minimum | 32 Degrees F |
| Full Load Current | 4.1 A |
| Operating Pressure - Maximum | 150 psi |
| Flow Rate - Maximum | 128 gpm |
| Includes Union | No Union Included |
| Connection Standard | Flange |
| Motor Enclosure Design | Open Drip Proof |
| Media Temperature - Maximum | 230 Degrees F |
| Includes Flange | No Flange Included |
Description

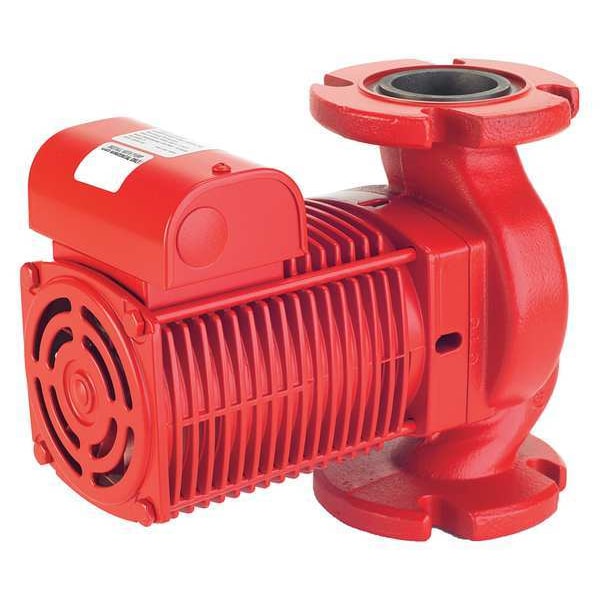

The Armstrong 182212-645 is a standard hydronic circulating pump, part of the E30.2-2 series. This hot water circulating pump moves water through a hydronic heating system, operating at 115V AC, single phase, with 2/5 hp.
