- Voltage: 208-240/460V AC
- Phase: Three
- Horsepower: 1 hp
- Inlet/Outlet Size: 2 in
- Compatible Discharge Pipe Size: 2 in
- Compatible Intake Pipe Size: 2 in
Specifications
| Part Number | 179288LF |
| Brand | Bell & Gossett |
| Voltage | 208-240/460V AC |
| Phase | Three |
| Horsepower | 1 hp |
| Inlet/Outlet Size | 2 in |
| Series | E9014T |
| Face to Face Dimension | 11 1/2 in |
| Overall Length | 13.13 in |
| Overall Height | 17 in |
| Overall Width | 8 in |
| Compatible Discharge Pipe Size | 2 in |
| Compatible Intake Pipe Size | 2 in |
| Manufacturer Warranty Length | 1 yr |
| For Discharge Pipe Diameter | 2 in |
| For Inlet Pipe Diameter | 2 in |
| Item | Hydronic Circulating Pump |
| Pump Type | In Line Centrifugal |
| Number of Speeds | 1 |
| Max. GPM @ Head | 160 gpm @ 14 ft |
| Maximum Feet of Head | 30 ft |
| Min. GPM @ Head | 25 gpm @ 6 ft |
| Connection Type | FNPT |
| Thermal Protection | yes |
| Pump Mount | In Line |
| Mechanical Seal | EPR/Carbon/Silicon Carbide |
| Impeller Material | Cast Bronze |
| Best Efficiency GPM @ Head | 99 gpm @ 25 ft |
| Shut-Off | 30 ft |
| Amps | 3.2/1.6 |
| Shaft Material | 303 Stainless Steel |
| Drive Type | Direct |
| Standards | NEMA |
| Compatible Media Type | Water |
| Maximum Operating Pressure | 175 psi |
| For Use With Potable Systems | No |
| Pump Mounting Position | Vertical/Horizontal |
| Motor Enclosure Design | Open Drip Proof |
| Maximum Media Temperature | 200 Degrees F |
| Series Family | E90 |
| Nameplate Voltage | 208-230/460V AC |
| Minimum Media Temperature | 100 Degrees F |
| Pipe to Flange or Union Connection Type | FNPT |
| Pump Housing Material | Cast Iron |
| Maximum Flow Rate @ 25 Feet of Head | 98 gpm |
| Maximum Flow Rate @ 15 Feet of Head | 154 gpm |
| Maximum Flow Rate @ 20 Feet of Head | 129 gpm |
| Maximum RPM | 1,725 RPM |
| For Low Lead Compliance Level | CE |
| Connection Standard | Flange |
| Flow Rate - Maximum | 160 gpm |
| Includes Volute | Volute Included |
| Includes Flange | Flange Included |
| Media Temperature - Minimum | -10 Degrees F |
| Operating Pressure - Maximum | 175 psi |
| Pump Casing Material | Cast Iron |
| Feet of Head - Maximum | 30 ft |
| Media Temperature - Maximum | 200 Degrees F |
| Mounting Orientation | Horizontal, Vertical |
Description

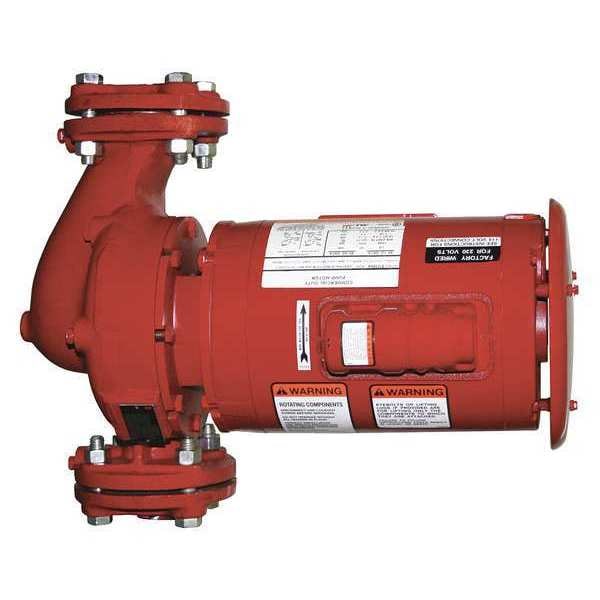

The Bell & Gossett 179288LF is a 1 hp hydronic circulating pump from the E9014T series. This inline centrifugal pump circulates water in a hydronic system. It operates on 208-240/460V AC, three-phase power.
