- Frame Material: Cast Iron
- Hz: 60
- Voltage: 208 to 240/460V AC
- Nameplate RPM: 1,725
- Phase: Three
- Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Specifications
| Part Number | 169237 |
| Brand | Bell & Gossett |
| For Use With Mfr. Model Number | 617T, 625T |
| For Pump Number | 5YN73, 5YN77 |
| Frame | NEMA 56 |
| Motor Mounting Type | Face |
| Motor Shaft Rotation | CCWLE |
| Item | Circulating Pump Motor |
| Frame Material | Cast Iron |
| Hz | 60 |
| Motor Design | 3-Phase |
| Voltage | 208 to 240/460V AC |
| Nameplate RPM | 1,725 |
| Phase | Three |
| Motor Enclosure Design | Open Drip Proof |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| RPM Range | 1,701-1,800 |
| Motor Thermal Protection | None |
| HP | 1 1/2 |
| Motor Sub Application | Water Circulator |
| Motor Application | Pump |
| Motor Frame Material | Cast Iron |
| Full Load Amps | 4.8/2.4 |
| No. of Speeds | 1 |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Number of Speeds | 1 |
| Maximum Ambient Temperature | 104 Degrees F |
| Compatible with Brand | Bell & Gossett |
| Compatible with Series | W69035, W69232, W69233, W69237 |
| Compatible with Pump Type | In-Line Circulating Pumps |
| Minimum Ambient Temperature | 32 Degrees F |
| Full Load Current | 4.8 A |
| Nameplate Voltage | 208-230/460V AC |
| Horsepower | 1 1/2 hp |
| Frequency | 60 Hz |
| Compatible with Manufacturer Model Number | 617T, 625T |
| Maximum RPM | 1,725 RPM |
| Compatible with Series Family | BE627S, BE627T, E617S, E617T, E625, E625S, E627S, E627T |
| Compatible Manufacturer Part Number | 617T, 625T |
| Compatible Manufacturer Model Number | 617T, 625T |
| Compatible with Manufacturer Model No. | 617T, 625T |
| Compatible with Mfr. Model No. | 617T, 625T |
| For Use with Mfr Model Number | 617T, 625T |
| Compatible Pump Manufacturer Part Number | 617T, 625T |
| Compatible Mfr. Model Number | 617T, 625T |
| Revolutions Per Minute - Maximum | 1,725 RPM |
| Thermal Protection | No Thermal Protection |
| Ambient Temperature - Maximum | 104 Degrees F |
| Ambient Temperature - Minimum | 32 Degrees F |
| Motor Frame Designation | 56 |
Description

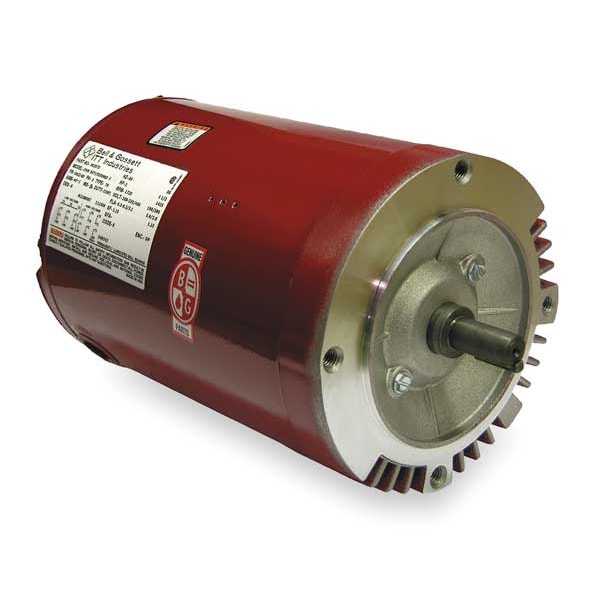

The Bell & Gossett 169237 is a three-phase circulating pump motor with a cast iron frame. This motor powers the pump to move fluid through a hydronic system. It is a 1-1/2 HP, 1,725 RPM unit rated for 208 to 240/460V AC at 60 Hz, and is designed for use with model numbers 617T and 625T.
