- Voltage: 115/230
- Full Load Amps @ 115/230V: 7.2/4.0
- Receiver Size (Gal.): 14
- Vent Line Port Pipe Size: 1 1/4 in
- Compatible Intake Pipe Size: 2 in
- Drain Port Size: 1 1/2 in
Specifications
| Part Number | 160031 |
| Brand | Hoffman |
| Voltage | 115/230 |
| NPT Low Return Inlet | 2 in |
| Mounting | 4-Bolt Flange |
| NPT Drain Port | 1/2 in |
| Full Load Amps @ 115/230V | 7.2/4.0 |
| Receiver Size (Gal.) | 14 |
| Width | 22 3/4 in |
| Height | 12 15/16 in |
| Length | 22 1/2 in |
| Vent Line Port Pipe Size | 1 1/4 in |
| Overall Length | 16.5 in |
| Compatible Intake Pipe Size | 2 in |
| Drain Port Size | 1 1/2 in |
| Overall Height | 12.94 in |
| Manufacturer Warranty Length | 20 yr |
| Overall Width | 22.75 in |
| Compatible Discharge Pipe Size | 3/4 in |
| Overflow Port Pipe Size | 2 in |
| Drain Port Diameter | 1 1/2 in |
| Discharge Diameter | 3/4 in |
| Inlet Diameter | 2 in |
| Overflow Port Pipe Diameter | 2 in |
| Vent Line Port Pipe Diameter | 1 1/4 in |
| Item | Condensate Return System |
| NPT Pump Discharge | 3/4 in |
| NPT Overflow Port | 2 in |
| Bearings | Permanently Lubricated Ball |
| Application | Condensate Transfer for Residential, Commercial and Industrial Steam Heating and Industrial Recessing, Dry Cleaning Plants, Chemical Refineries, Wood Pulp Processing, Textile Mills and Manufacturing Facilities |
| GPM of Water @ 30 Ft. of Head | 33 |
| Number of Pumps | 1 |
| Volute Material | Cast Iron |
| GPM of Water @ 50 Ft. of Head | 12 |
| Shaft Material | Threaded Stainless Steel |
| GPM of Water @ 45 Ft. of Head | 21 |
| Discharge Pressure (PSI) | 20 |
| Tank Material | Cast Iron |
| NPT Vent Line Port | 1 1/4 in |
| RPM | 3,540 RPM |
| Impeller Material | Bronze |
| Pump Flow (GPM) | 18 |
| HP | 1/3 hp |
| Max. Head (Ft.) | 56 |
| Switch Type | Normally Open |
| GPM of Water @ 35 Ft. of Head | 30 |
| Type | Simplex |
| Motor Type | Open Dripproof, Single Phase, Capacitor Start |
| Hz | 60 |
| Pump Material | Heavy Duty Cast Iron |
| EDR Rating | 12,000 |
| Seal Type | John Crane Type 6 Buna N/Carbon/Ceramic Shaft |
| GPM of Water @ 40 Ft. of Head | 26 |
| Discharge Connection Style | NPT |
| Horsepower | 1/3 hp |
| Pump Mounting Position | Vertical |
| Tank Capacity | 14 gal |
| Maximum Media Temperature | 200 Degrees F |
| Maximum Feet of Head | 52 ft |
| Maximum Flow Rate @ 40 Feet of Head | 26 gpm |
| Pump Housing Material | Cast Iron |
| Amps | 4/7.2 A |
| Number of Intakes | 1 |
| Pump Type | Condensate Return |
| Maximum RPM | 3,500 RPM |
| Pump Activation Type | Float Switch |
| Compatible Media Type | Water |
| Nameplate Voltage | 115/230V AC |
| Frequency | 60 Hz |
| Maximum Flow Rate @ 35 Feet of Head | 30 gpm |
| Intake Connection Style | NPT |
| Maximum Flow Rate @ 45 Feet of Head | 21 gpm |
| Series | WC12-20B |
| Equivalence of Direct Radiation Rating | 12,000 |
| Body Gasket Material | Carbon/Ceramic |
| Maximum Flow Rate @ 50 Feet of Head | 12 gpm |
| Phase | Single |
| Series Family | WC |
| For Use With Potable Systems | No |
| Maximum Flow Rate @ 30 Feet of Head | 33 gpm |
| Motor Enclosure Design | Open Drip Proof |
| Discharge Pressure | 20 psi |
| Flow Rate - Maximum | 34 gpm |
| Inlet Standard | NPT |
| Full Load Current | 4/7.2 A |
| Feet of Head - Maximum | 52 ft |
| Discharge Standard | NPT |
| Inlet Gender | Female |
| Tank Orientation | Horizontal |
| Mounting Orientation | Vertical |
| Revolutions Per Minute - Maximum | 3,500 RPM |
| Media Temperature - Maximum | 200 Degrees F |
| Pump Casing Material | Cast Iron |
| Pump System Design | Simplex |
| Discharge Gender | Female |
Description

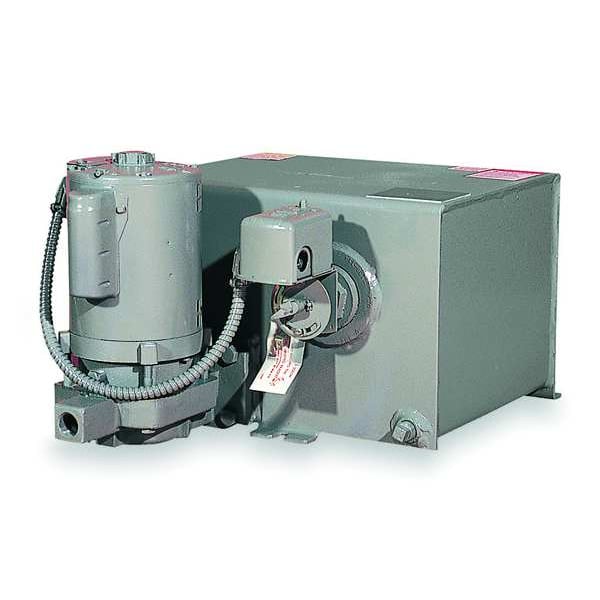

The Hoffman 160031 is a condensate return system, a type of condensate pump. This unit collects and transfers condensate from steam heating and processing systems back to the boiler or to a drain. It is designed for condensate transfer in residential, commercial, and industrial steam heating applications, as well as industrial processes including dry cleaning plants, chemical refineries, wood pulp processing, textile mills, and manufacturing facilities. The pump operates at 115/230 volts with full load amps of 7.2/4.0, features a cast iron volute and a threaded stainless steel shaft, and accepts a 2-inch intake pipe with a 3/4-inch discharge pipe.
