- Voltage: 115/230
- RPM: 3,540 RPM
- Receiver Size (Gal.): 14
- Vent Line Port Pipe Size: 1 1/4 in
- Drain Port Size: 1/2 in
- Compatible Intake Pipe Size: 2 in
Specifications
| Part Number | 160013 |
| Brand | Hoffman |
| Voltage | 115/230 |
| Features | Mechanical Alternator Equalizes Running Time Between Two Pumps and Provides Emergency Backup in Case of Excessive Liquid Return or Pump Failure |
| Bearings | Permanently Lubricated Ball |
| RPM | 3,540 RPM |
| Height | 12 15/16 in |
| Width | 22 7/8 in |
| Receiver Size (Gal.) | 14 |
| Length | 22 1/2 in |
| Vent Line Port Pipe Size | 1 1/4 in |
| Drain Port Size | 1/2 in |
| Overall Height | 12.94 in |
| Compatible Intake Pipe Size | 2 in |
| Compatible Discharge Pipe Size | 3/4 in |
| Overall Length | 22.5 in |
| Manufacturer Warranty Length | 20 yr |
| Overflow Port Pipe Size | 2 in |
| Overall Width | 22.88 in |
| Inlet Diameter | 2 in |
| Drain Port Diameter | 1/2 in |
| Overflow Port Pipe Diameter | 2 in |
| Vent Line Port Pipe Diameter | 1 1/4 in |
| Discharge Diameter | 3/4 in |
| Item | Condensate Return System |
| Mounting | 4-Bolt Flange |
| Application | Condensate Transfer for Residential, Commercial and Industrial Steam Heating and Industrial Recessing, Dry Cleaning Plants, Chemical Refineries, Wood Pulp Processing, Textile Mills and Manufacturing Facilities |
| GPM of Water @ 30 Ft. of Head | 33 |
| Volute Material | Cast Iron |
| GPM of Water @ 45 Ft. of Head | 21 |
| HP | 1/3 hp |
| Shaft Material | Threaded Stainless Steel |
| Pump Flow (GPM) | 18 |
| Impeller Material | Bronze |
| NPT Pump Discharge | 3/4 in |
| Max. Head (Ft.) | 56 |
| Motor Type | Open Dripproof, Single Phase, Capacitor Start |
| NPT Vent Line Port | 1 1/4 in |
| Discharge Pressure (PSI) | 20 |
| NPT Drain Port | 1/2 in |
| GPM of Water @ 50 Ft. of Head | 12 |
| Pump Material | Heavy Duty Cast Iron |
| Seal Type | John Crane Type 6 Buna N/Carbon/Ceramic Shaft |
| Full Load Amps @ 115/230V | 7.2/4.0 |
| GPM of Water @ 40 Ft. of Head | 26 |
| Number of Pumps | 2 |
| GPM of Water @ 35 Ft. of Head | 30 |
| NPT Low Return Inlet | 2 in |
| NPT Overflow Port | 2 in |
| Hz | 60 |
| EDR Rating | 12,000 |
| Tank Material | Steel |
| Type | Duplex |
| Intake Connection Style | NPT |
| Frequency | 60 Hz |
| Motor Enclosure Design | Open Drip Proof |
| Nameplate Voltage | 115/230V AC |
| Pump Activation Type | Float Switch |
| Pump Type | Condensate Return |
| Maximum Media Temperature | 200 Degrees F |
| Maximum Flow Rate @ 45 Feet of Head | 21 gpm |
| Maximum Flow Rate @ 50 Feet of Head | 12 gpm |
| Pump Housing Material | Cast Iron |
| Discharge Connection Style | NPT |
| For Use With Potable Systems | No |
| Series Family | WCS |
| Phase | Single |
| Maximum Flow Rate @ 35 Feet of Head | 30 gpm |
| Number of Intakes | 1 |
| Tank Capacity | 14 gal |
| Series | WCSD12-20 B-MA |
| Maximum Flow Rate @ 30 Feet of Head | 33 gpm |
| Equivalence of Direct Radiation Rating | 12,000 |
| Compatible Media Type | Water |
| Maximum Feet of Head | 52 ft |
| Horsepower | 1/3 hp |
| Pump Mounting Position | Vertical |
| Maximum Flow Rate @ 40 Feet of Head | 26 gpm |
| Body Gasket Material | Carbon/Ceramic |
| Maximum RPM | 3,500 RPM |
| Amps | 4/7.2 A |
| Feet of Head - Maximum | 52 ft |
| Full Load Current | 4/7.2 A |
| Tank Orientation | Horizontal |
| Flow Rate - Maximum | 34 gpm |
| Inlet Standard | NPT |
| Pump System Design | Duplex |
| Revolutions Per Minute - Maximum | 3,500 RPM |
| Discharge Gender | Female |
| Mounting Orientation | Vertical |
| Inlet Gender | Female |
| Discharge Standard | NPT |
| Pump Casing Material | Cast Iron |
| Media Temperature - Maximum | 200 Degrees F |
| Discharge Pressure | 20 psi |
Description

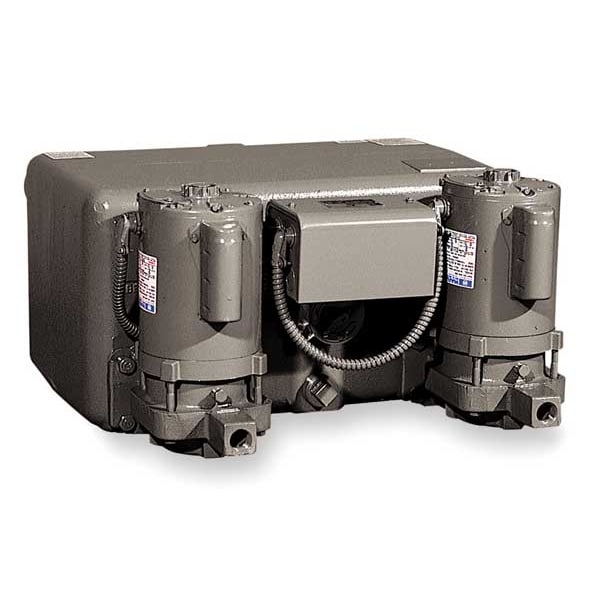

The Hoffman 160013 is a condensate return system, specifically a Watchman Dplx unit with a mechanical alternator. This condensate pump equalizes running time between two pumps and provides emergency backup in case of excessive liquid return or pump failure. It operates at 3,540 RPM on 115/230 volts and is used for condensate transfer in steam heating and industrial processing applications.
