- Voltage: 115/230
- Shaft Material: Threaded Stainless Steel
- Receiver Size (Gal.): 14
- Vent Line Port Pipe Size: 1 1/4 in
- Overflow Port Pipe Size: 2 in
- Compatible Discharge Pipe Size: 3/4 in
Specifications
| Part Number | 160012 |
| Brand | Hoffman |
| Voltage | 115/230 |
| NPT Pump Discharge | 3/4 in |
| GPM of Water @ 35 Ft. of Head | 30 |
| Max. Head (Ft.) | 56 |
| Shaft Material | Threaded Stainless Steel |
| Height | 12 15/16 in |
| Length | 22 1/2 in |
| Receiver Size (Gal.) | 14 |
| Width | 23 7/8 in |
| Overall Length | 22.5 in |
| Vent Line Port Pipe Size | 1 1/4 in |
| Overflow Port Pipe Size | 2 in |
| Manufacturer Warranty Length | 20 yr |
| Compatible Discharge Pipe Size | 3/4 in |
| Drain Port Size | 1/2 in |
| Compatible Intake Pipe Size | 2 in |
| Overall Width | 22.88 in |
| Overall Height | 12.94 in |
| Discharge Diameter | 3/4 in |
| Vent Line Port Pipe Diameter | 1 1/4 in |
| Inlet Diameter | 2 in |
| Overflow Port Pipe Diameter | 2 in |
| Drain Port Diameter | 1/2 in |
| Item | Condensate Return System |
| GPM of Water @ 45 Ft. of Head | 21 |
| Tank Material | Steel |
| Pump Material | Heavy Duty Cast Iron |
| Application | Condensate Transfer for Residential, Commercial and Industrial Steam Heating and Industrial Recessing, Dry Cleaning Plants, Chemical Refineries, Wood Pulp Processing, Textile Mills and Manufacturing Facilities |
| NPT Low Return Inlet | 2 in |
| RPM | 3,540 RPM |
| Bearings | Permanently Lubricated Ball |
| Motor Type | Open Dripproof, Single Phase, Capacitor Start |
| Mounting | 4-Bolt Flange |
| Volute Material | Cast Iron |
| NPT Overflow Port | 2 in |
| Impeller Material | Bronze |
| Switch Type | Normally Open |
| GPM of Water @ 50 Ft. of Head | 12 |
| HP | 1/3 hp |
| Seal Type | John Crane Type 6 Buna N/Carbon/Ceramic Shaft |
| Discharge Pressure (PSI) | 20 |
| Full Load Amps @ 115/230V | 7.2/4.0 |
| Type | Simplex |
| Pump Flow (GPM) | 18 |
| Hz | 60 |
| NPT Vent Line Port | 1 1/4 in |
| Number of Pumps | 1 |
| GPM of Water @ 30 Ft. of Head | 33 |
| GPM of Water @ 40 Ft. of Head | 26 |
| EDR Rating | 12,000 |
| NPT Drain Port | 1/2 in |
| Pump Housing Material | Cast Iron |
| Tank Capacity | 14 gal |
| Maximum RPM | 3,500 RPM |
| Maximum Flow Rate @ 40 Feet of Head | 26 gpm |
| Series Family | WCS |
| Nameplate Voltage | 115/230V AC |
| Amps | 4/7.2 A |
| Maximum Feet of Head | 52 ft |
| For Use With Potable Systems | No |
| Pump Type | Condensate Return |
| Maximum Flow Rate @ 30 Feet of Head | 33 gpm |
| Phase | Single |
| Maximum Media Temperature | 200 Degrees F |
| Motor Enclosure Design | Open Drip Proof |
| Maximum Flow Rate @ 35 Feet of Head | 30 gpm |
| Intake Connection Style | NPT |
| Series | WCS12-20B |
| Frequency | 60 Hz |
| Equivalence of Direct Radiation Rating | 12,000 |
| Maximum Flow Rate @ 45 Feet of Head | 21 gpm |
| Compatible Media Type | Water |
| Maximum Flow Rate @ 50 Feet of Head | 12 gpm |
| Discharge Connection Style | NPT |
| Number of Intakes | 1 |
| Body Gasket Material | Carbon/Ceramic |
| Horsepower | 1/3 hp |
| Pump Activation Type | Float Switch |
| Pump Mounting Position | Vertical |
| Pump Casing Material | Cast Iron |
| Media Temperature - Maximum | 200 Degrees F |
| Discharge Gender | Female |
| Discharge Pressure | 20 psi |
| Inlet Standard | NPT |
| Revolutions Per Minute - Maximum | 3,500 RPM |
| Full Load Current | 4/7.2 A |
| Mounting Orientation | Vertical |
| Tank Orientation | Horizontal |
| Discharge Standard | NPT |
| Inlet Gender | Female |
| Pump System Design | Simplex |
| Feet of Head - Maximum | 52 ft |
| Flow Rate - Maximum | 34 gpm |
Description

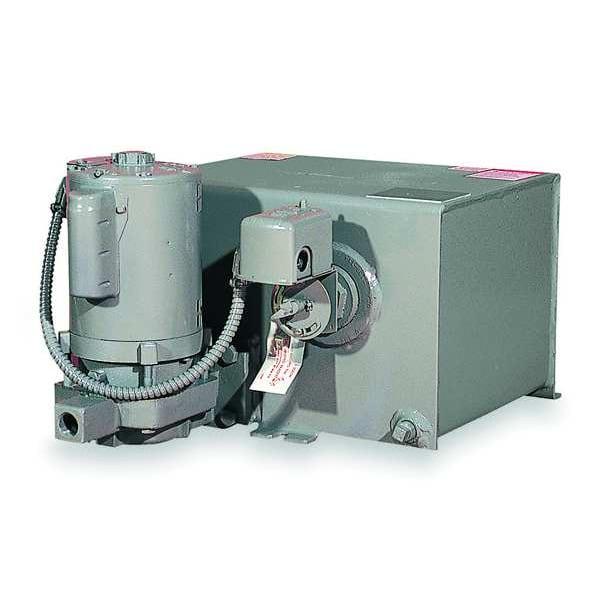

The Hoffman 160012 is a condensate return system (WCS12-20B 1/3HP Single) that collects and returns condensate from steam heating and process systems. This unit features a heavy-duty cast iron pump with a threaded stainless steel shaft, a steel tank, and operates on 115/230 volts. It is designed for condensate transfer in residential, commercial, and industrial steam heating, as well as industrial recessing, dry cleaning plants, chemical refineries, wood pulp processing, textile mills, and manufacturing facilities.
