- Condensate Capacity Lbs/Hr: 1,200 lb/hr
- Max. Temp.: 353 Degrees @ 125 psig
- Port Connection Size: 3/4 in
- Body Material: Cast Iron
- Maximum Capacity at Maximum Pressure Load: 1,200 lb/hr at 15 psi
- Operating Pressure - Maximum: 15 psi
Specifications
| Part Number | 15B3 |
| Brand | Armstrong International |
| (F)NPT Connections | 3/4 in |
| Max. Operating PSI | 15 psi |
| End to End Length | 3 7/8 in |
| Condensate Capacity Lbs/Hr | 1,200 lb/hr |
| Max. Temp. | 353 Degrees @ 125 psig |
| Overall Width | 5 3/8 in |
| Overall Length | 3 7/8 in |
| Port Connection Size | 3/4 in |
| Overall Depth | 4 7/8 in |
| Item | Steam Trap |
| Body Material | Cast Iron |
| Application | Steam Mains |
| Trap Position | Horizontal |
| Pipe Configuration | Same Side |
| Type | Float and Thermostatic |
| Includes Air Vent | Air Vent Included |
| Maximum Capacity at Maximum Pressure Load | 1,200 lb/hr at 15 psi |
| Distance Between Inlet and Outlet Port | 2 3/4 in |
| Operating Pressure - Maximum | 15 psi |
| Operating Temperature - Maximum | 353 Degrees F |
| Air Vent Material | Bronze/Stainless Steel |
| Installation Orientation | Horizontal |
| Manufacturer Series | B |
| Port Connection Type | NPT |
| Configuration | C Pattern |
| Condensate Capacity | 1,200 lb/hr |
| Allowable Pressure - Maximum | 125 psi |
| Port Connection Gender | Female |
| Float Material | Stainless Steel |
| Includes Strainer | Strainer Not Included |
| Steam Trap Type | Float & Thermostatic |
| Port Types Included | Air Vent |
| Number of Ports | 4 |
Description

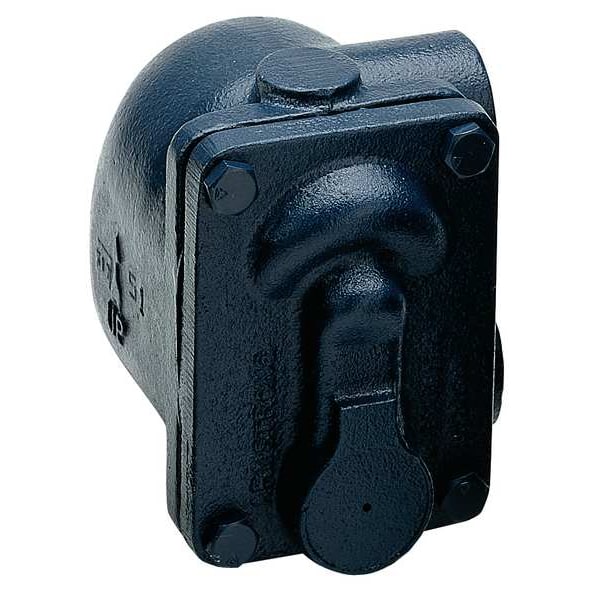

The Armstrong International 15B3 is a cast-iron steam trap with 3/4-inch FNPT connections. This type of part automatically drains condensate from steam systems while preventing steam loss, with a maximum operating pressure of 15 psi and condensate capacity of 1,200 lb/hr. It is used on steam mains, rated for temperatures up to 353°F at 125 psig.
