- Pressure Setting Range (In. WC): 0.05 to 1.0
- Operating Temp. Range (F): -40 to 180
- Sample Line Connection Size: 1/4 in
- Mounting Hole Diameter: 3/16 in
- Minimum Operating Temperature: -40 Degrees F
- Maximum Operating Temperature: 180 Degrees F
Specifications
| Part Number | 141-0574 |
| Brand | Siemens |
| Features | Two Connectors |
| Electrical Rating | 15 A Non-Inductive 120 to 277V AC, 300 VA Pilot Duty @ 120 to 277V AC |
| Differential (In. WC) | 0.06 to 0.6 |
| Pressure Setting Range (In. WC) | 0.05 to 1.0 |
| Operating Temp. Range (F) | -40 to 180 |
| Height | 6 1/2 in |
| Width | 4 3/4 in |
| Depth | 3 3/4 in |
| Sample Line Connection Size | 1/4 in |
| Overall Height | 6 1/8 in |
| Overall Depth | 3 1/4 in |
| Overall Width | 3 7/8 in |
| Mounting Hole Diameter | 3/16 in |
| Mounting Location | Vertical |
| Sample Line Connector | 1/4 in OD |
| Item | Air Pressure Switch |
| Application | Clogged or Dirty Filter Detection, High Pressure Detection |
| Mounting Holes O.C. | 3 7/8 in |
| Includes | Ferrules, Nuts |
| Switch Type | SPDT |
| Function | The Diaphragm Operates A Spring Lever To Actuate The Snap Switch, The Manual Reset Switch Keeps The Electrical Contact Open Until Pushed To Reset. Turning The Adjustment Knob Clockwise Increases The Setpoint |
| Agency Compliance | CSA 1811M25, UL MFHX File MH9888 |
| Type | Auto Reset |
| Minimum Operating Temperature | -40 Degrees F |
| Contact Form | SPDT |
| Maximum Operating Temperature | 180 Degrees F |
| Housing Material | Steel |
| Electrical Connection Type | Hardwired |
| Number of Switches | 1 |
| Maximum Differential Pressure Setting | 0.6 in wc |
| Maximum Pressure Setting | 1 in wc |
| Housing Material Finish | Aluminum |
| Minimum Differential Pressure Setting | 0.06 in wc |
| Pressure Type | Differential |
| Product Type | Air Flow Switch |
| Input Voltage | 120 to 277V AC |
| Pressure Setpoint Type | Adjustable |
| Minimum Pressure Setting | 0.05 in wc |
| Reset Type | Automatic Reset |
| Maximum Pressure Rating | 1 in wc |
| Weight | 1 lb |
| Mounting Hole Center to Center Distance | 3 7/8 in |
| Standards | CSA Certified 1811M25, UL Listed MFHX File MH9888 |
| Sample Line Connector Type | Integral Compression |
| Mounting Orientation | Vertical |
| Housing Type | Conduit Box |
Description

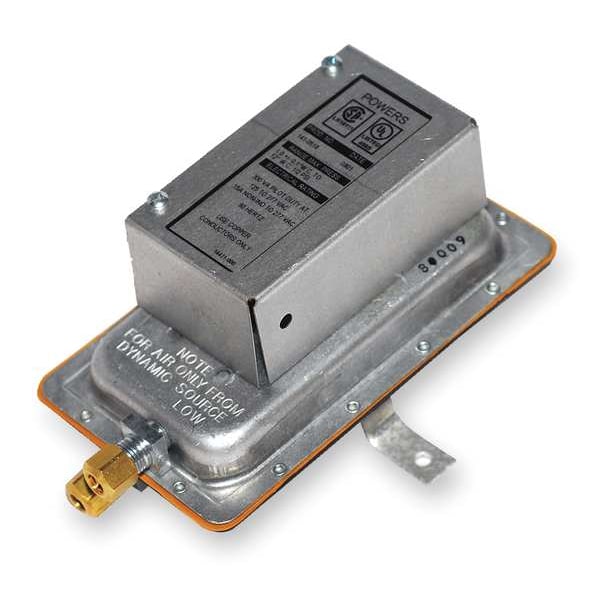

The Siemens 141-0574 is an air pressure switch with SPDT contacts and auto reset. It detects clogged or dirty filters and high pressure conditions by sensing air pressure changes within a 0.05 to 1.0 in. WC range. This switch is rated for 15 A non-inductive at 120 to 277V AC and 300 VA pilot duty at the same voltage range, and operates in temperatures from -40 to 180°F.
