- Totally Enclosed Fan: Cooled Motor Enclosure Design
- HP: 7 1/2
- kW: 5.5
- Nameplate RPM: 3545 rpm
- Frame: 132S
- Voltage: 460V AC
Specifications
| Part Number | 13984840 |
| Brand | Weg |
| Item | General Purpose Motor |
| Totally Enclosed Fan | Cooled Motor Enclosure Design |
| HP | 7 1/2 |
| kW | 5.5 |
| Nameplate RPM | 3545 rpm |
| Frame | 132S |
| Voltage | 460V AC |
| Hz | 60 Hz |
| Three | Phase |
| Full Load Amps | 8.97 A |
| Base | Rigid |
| Motor Mounting Type | C-Face |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.25 |
| Ball Motor | Bearings |
| Motor Frame Material | Aluminum |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Nominal Efficiency | 89.5 Percent |
| Duty | Continuous |
| Features | Three-Phase, 3001-3600 |
Description

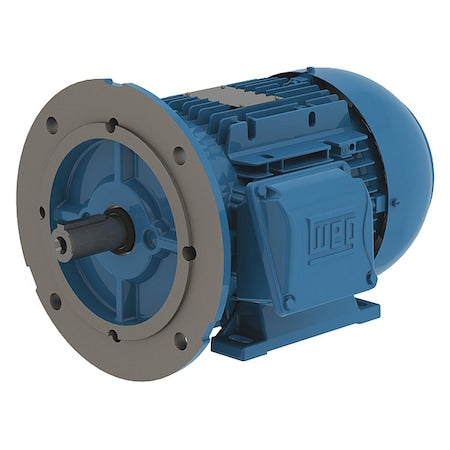

The Weg 13984840 is a three-phase general purpose motor rated at 7 1/2 HP and 5.5 kW. It operates at 460V AC, 60 Hz, with a nameplate speed of 3545 rpm and a full load current of 8.97 A. The motor has a 132S aluminum frame, rigid base with C-face mounting, ball bearings, Class F insulation, a 1.25 service factor, and continuous duty.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
