- Dynamic Load Capacity (Lb.): 10,700 lb
- Static Load Capacity (Lb.): 13,400 lb
- Inside Diameter: 1.5 in
- Bore Diameter Tolerance: +0.0008 to -0.0000 in
- Bore Diameter: 1 1/2 in
- Outside Diameter: 2.559 in
Specifications
| Part Number | 13685 |
| Brand | Reznor |
| Bore Dia. | 1.5 in |
| Cone Width | 0.75 in |
| Max. Shaft Fillet Radius | 0.14 in |
| Dynamic Load Capacity (Lb.) | 10,700 lb |
| Static Load Capacity (Lb.) | 13,400 lb |
| Shaft Fillet Radius | 0.137 in |
| Inside Diameter | 1.5 in |
| Bore Diameter Tolerance | +0.0008 to -0.0000 in |
| Bore Diameter | 1 1/2 in |
| Outside Diameter | 2.559 in |
| Item | Tapered Roller Bearing Cone |
| Temp. Range (F) | -40 Degrees to 250 Degrees F |
| Cage Material | Pressed Steel |
| Dynamic Load Capacity | 53 kN |
| Number of Rows | One |
| System of Measurement | Inch |
| Roller Material Grade | 52100 |
| Bearing Industry Number | 13685 |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Static Load Capacity | 59.5 kN |
| Bore Type | Cylindrical |
| Ring Material | Alloy Steel |
| Compatible Cup Manufacturer Part Number | 13621 |
| Ring Material Grade | 52100 |
| Standards | ABMA |
| Roller Material | Alloy Steel |
Description

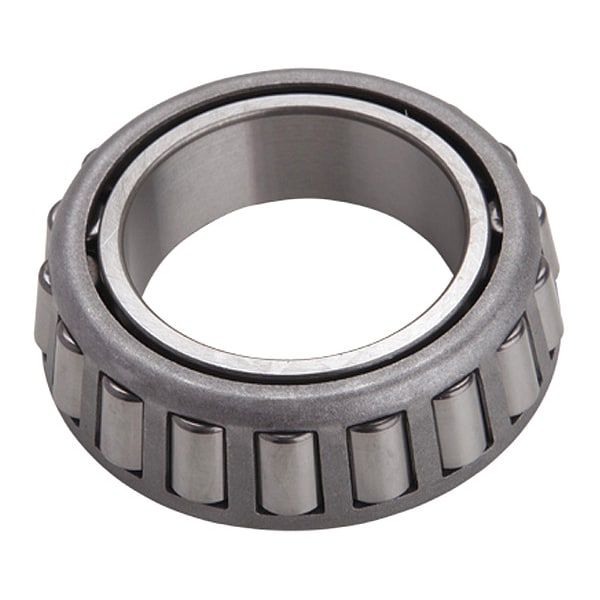

The Reznor 13685 is a tapered roller bearing cone. This bearing component supports radial and axial loads in rotating equipment, reducing friction between moving parts. It has a dynamic load capacity of 10,700 lb (53 kN) and a static load capacity of 13,400 lb, with a temperature range of -40 to 250 degrees Fahrenheit, and features a pressed steel cage with 52100 grade roller material.
