- Pressure Limit: 150 psig (10.34 bar).
- Wetted Materials: Body: Cast iron. Float: 304 SS. Trim and packing gland: Brass. Packing: Carbon. Body gasket: Carbon.
- Temperature Limit: Ambient Temperature: 212°F (100°C);Process Temperature: 365°F (185°C).
Specifications
| Part Number | 123-7000-153 |
| Brand | Dwyer Instruments |
| Deadband | Approximately 1-1/2" (38.1 mm). |
| Pressure Limit | 150 psig (10.34 bar). |
| Switch Type | SPDT snap switch or mercury switch. Optional DPDT or two stage. |
| Agency Approvals | CSA, UL. (Snap switch is not rated). |
| Electrical Rating | Snap switch: 15 A @ 120/240/480 VAC, 0.5 A @ 120 VDC resistive, 0.25 A @ 240 VDC resistive. Mercury switch: 4 A @ 120 VAC/DC, 2 A @ 240 VAC/DC. |
| Wetted Materials | Body: Cast iron. Float: 304 SS. Trim and packing gland: Brass. Packing: Carbon. Body gasket: Carbon. |
| Conduit Connection | 7/8" (22.23 mm) hole for 1/2" (12.7 mm) conduit. |
| Electrical Connections | Screw terminal. |
| Process Connections | 1" female NPT. |
| Service | Compatible liquids. Cast iron is not for use with lethal or flammable substances either liquid or gaseous. |
| Mounting Orientation | Vertical. |
| Temperature Limit | Ambient Temperature: 212°F (100°C);Process Temperature: 365°F (185°C). |
| Enclosure Rating | General purpose. Optional weatherproof. |
Description

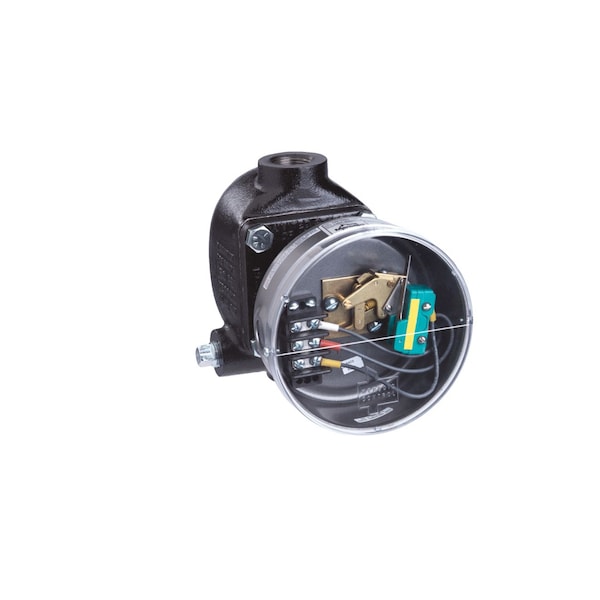

The Dwyer Instruments 123-7000-153 is a water level control switch with a cast iron chamber and SPDT snap switch or optional mercury switch. It monitors liquid level and actuates at a pressure limit of 150 psig (10.34 bar), with electrical ratings of 15 A at 120/240/480 VAC for the snap switch or 4 A at 120 VAC/DC for the mercury switch. Wetted materials include a cast iron body, 304 SS float, and brass trim, with 1" female NPT process connections.
