- Phase: Three
- HP: 1 1/2 hp
- RPM Range: 1,701-1,800
- Voltage: 230/460V AC
- Motor Frame Material: Stainless Steel
- Shaft Material: Stainless Steel
Specifications
| Part Number | 119520.00 |
| Brand | Leeson |
| Motor Design | Three-Phase |
| Phase | Three |
| HP | 1 1/2 hp |
| RPM Range | 1,701-1,800 |
| Voltage | 230/460V AC |
| Body Dia. | 6.56 in |
| Overall Length | 12 1/4 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 10 1/2 in |
| Shaft Dia. | 5/8 in |
| Bolt Circle Dia. | 5 7/8 in |
| Manufacturers Warranty Length | 1 yr |
| Item | Washdown Motor |
| Frame | 56C |
| Motor Frame Material | Stainless Steel |
| Motor Thermal Protection | None |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Nominal Efficiency | 86.5 % |
| Standards | CE, CSA Certified, UL Recognized |
| Ins. Class | F |
| Motor Mounting Type | C-Face |
| Motor Shaft Rotation | CW/CCW |
| Duty | Continuous |
| Motor Bearings | Ball |
| Motor Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Motor Shaft Design | Keyed |
| Hz | 60/50 Hz |
| Max. Ambient Temp. | 40 Degrees C |
| Full Load Amps | 4.8/2.4 A |
| Endshields | 300 Series Stainless Steel |
| Drain Plugs | C Face |
| Nameplate RPM | 1,750 RPM |
| Motor Application | General Purpose |
| Frame Material | Rolled steel |
| NEMA Design | B |
| Conduit Box | 303 Stainless Steel |
| CC Number | CC005A |
| Usable @ 200V | Not Usable at 200V |
| Usable @ 208V | Usable at 208V |
| No. of Speeds | 1 |
| Finish | Unfinished |
| Service Factor @ 50Hz | 1.15 |
| Duty Cycle | Continuous |
| RPM @ 50Hz | 1,750 RPM |
| Weight | 75 lb |
| Endshield Material | Stainless Steel |
| Conduit Box Location | Exterior |
| Voltage @ 50Hz | 460V AC |
| Full Load Amps @ 50Hz | 4.6-4.8/2.4 A |
| HP @ 50Hz | 1 1/2 hp |
| Conduit Box Position | F1 |
Description

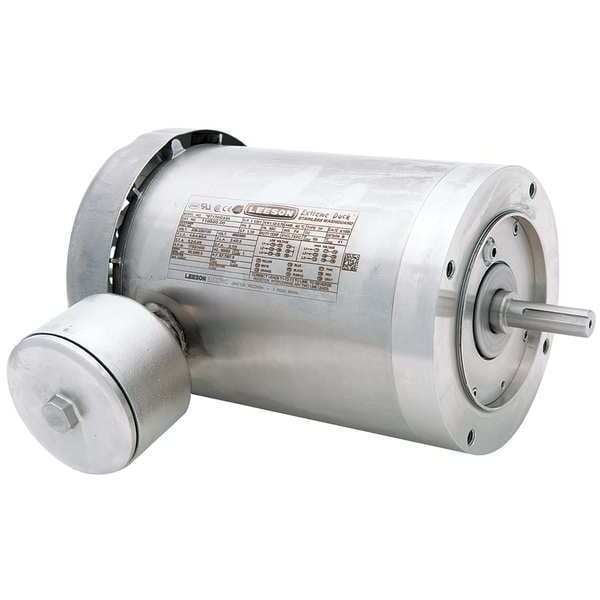

The Leeson 119520.00 is a washdown motor, a 1 1/2 hp, three-phase unit with a 1,701-1,800 RPM range and a voltage rating of 230/460V AC. This type of motor is designed to withstand high-pressure washdown environments, featuring a stainless steel frame and a Totally Enclosed Fan Cooled (TEFC) enclosure. It is CE, CSA Certified, and UL Recognized.
