- Phase: Three
- HP: 1 hp
- RPM Range: 1,101-1,200
- Voltage: 230/460V AC
- Motor Frame Material: Steel
- Frame Material: Rolled steel
Specifications
| Part Number | 119478.00 |
| Brand | Leeson |
| Motor Design | Three-Phase |
| Phase | Three |
| HP | 1 hp |
| RPM Range | 1,101-1,200 |
| Voltage | 230/460V AC |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 11 7/16 in |
| Overall Length | 13 3/8 in |
| Body Dia. | 7.38 in |
| Bolt Circle Dia. | 5 7/8 in |
| Manufacturers Warranty Length | 1 yr |
| Item | Washdown Motor |
| Frame | 56HC |
| Motor Frame Material | Steel |
| Motor Thermal Protection | None |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Bearings | Ball |
| Frame Material | Rolled steel |
| Max. Ambient Temp. | 40 Degrees C |
| Nameplate RPM | 1,170 RPM |
| Full Load Amps | 3.8/1.9 A |
| Motor Shaft Rotation | CW/CCW |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Motor Service Factor | 1.15 |
| Hz | 60 Hz |
| Motor Mounting Type | C-Face, Rigid Base |
| Ins. Class | F |
| Motor Application | General Purpose |
| Nominal Efficiency | 82.5 % |
| CC Number | CC005A |
| Application | General Purpose |
| Motor Mounting Position | Horizontal |
| NEMA Design | B |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Standards | BISSC Approved, CE, CSA Certified, UL Recognized |
| Motor Shaft Design | Keyed |
| No. of Speeds | 1 |
| Finish | Epoxy-Coated |
| Usable @ 208V | Not Usable at 208V |
| Weight | 43 lb |
| Usable @ 200V | Not Usable at 200V |
| Duty Cycle | Continuous |
| Conduit Box Location | Exterior |
| Endshield Material | Aluminum |
| Series | Washguard |
| Conduit Box Position | F1 |
Description

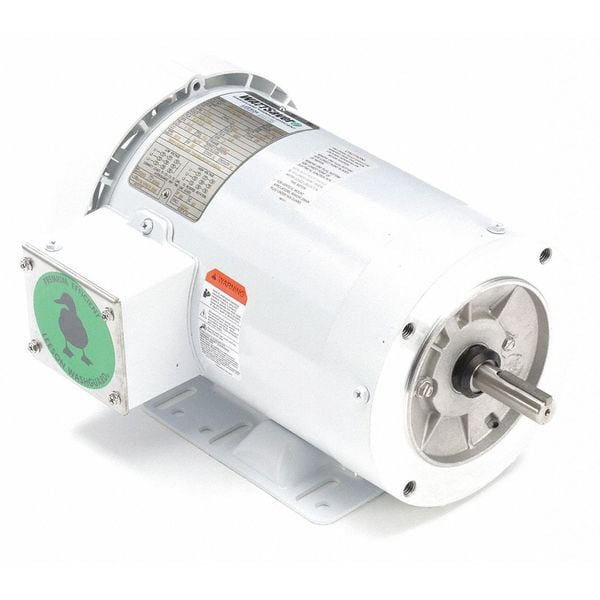

The Leeson 119478.00 is a three-phase washdown motor rated at 1 HP with 230/460V AC. This type of motor is designed to withstand high-pressure washdown environments in food processing or similar settings. It features a totally enclosed fan-cooled (TEFC) steel enclosure and a rolled steel frame.
