- Voltage: 208-240/460V AC
- Phase: Three
- Horsepower: 3/4 hp
- Inlet/Outlet Size: 1-1/2 in
- Compatible Intake Pipe Size: 1 1/2 in
- For Inlet Pipe Diameter: 1 1/2 in
Specifications
| Part Number | 116480LF-137A |
| Brand | Armstrong |
| Voltage | 208-240/460V AC |
| Phase | Three |
| Horsepower | 3/4 hp |
| Series | H-64 |
| Inlet/Outlet Size | 1-1/2 in |
| Face to Face Dimension | 13 1/2 in |
| Overall Length | 23 in |
| Overall Width | 10 in |
| Overall Height | 13.5 in |
| Compatible Intake Pipe Size | 1 1/2 in |
| Manufacturer Warranty Length | 2 yr |
| For Inlet Pipe Diameter | 1 1/2 in |
| Item | Circulating Pump |
| Pump Type | 3-Piece |
| Number of Speeds | 1 |
| Max. GPM @ Head | 62 gpm @ 13 ft |
| Maximum Feet of Head | 46 ft |
| Min. GPM @ Head | 15 gpm @ 44 ft |
| Connection Type | Flange |
| Shaft Material | Carbon Steel |
| Best Efficiency GPM @ Head | 40 gpm @ 37 ft |
| Includes | (2) Flanges, and (2) Gaskets, Nuts and Bolts |
| Amps | 1.4/2.7/2.8 A |
| Mechanical Seal | Silicon Carbide Mechanical Seal |
| Impeller Material | Metal |
| Thermal Protection | yes |
| Shut-Off | 45 ft |
| Pump Mount | In Line |
| Compliance | cUL, Low Lead, NSF-372 |
| Drive Type | Direct |
| Standards | NSF 372 |
| Loop Configuration | Open |
| Features | 3 Piece Oil Lubricated Booster |
| Compatible Media Type | Water |
| Pipe to Flange or Union Connection Type | FNPT |
| Maximum Flow Rate @ 40 Feet of Head | 30 gpm |
| Body Gasket Material | Silicon Carbide |
| Flange or Union Included | Yes |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Series Family | S&H |
| For Use With Potable Systems | Yes |
| Maximum Flow Rate @ 15 Feet of Head | 80 gpm |
| Maximum Flow Rate @ 10 Feet of Head | 85 gpm |
| Maximum Media Temperature | 225 Degrees F |
| Maximum Flow Rate @ 25 Feet of Head | 52 gpm |
| Nameplate Voltage | 208-240/460V AC |
| Maximum Operating Pressure | 175 psi |
| Maximum Flow Rate @ 1 Feet of Head | 100 gpm |
| Pump Housing Material | Bronze |
| Maximum RPM | 1,750 RPM |
| Maximum Flow Rate @ 20 Feet of Head | 75 gpm |
| Maximum Flow Rate @ 30 Feet of Head | 47 gpm |
| Maximum Flow Rate @ 5 Feet of Head | 95 gpm |
| Full Load Current | 1.4/2.7/2.8 A |
| Operating Pressure - Maximum | 175 psi |
| For Low Lead Compliance Level | CE |
| Includes Volute | No Volute Included |
| Pump Casing Material | Bronze |
| Media Temperature - Minimum | -4 Degrees F |
| Flow Rate - Maximum | 53 gpm |
| Revolutions Per Minute - Maximum | 1,750 RPM |
| Feet of Head - Maximum | 46 ft |
| Media Temperature - Maximum | 225 Degrees F |
| Motor Enclosure Design | Open Drip Proof |
| Includes Flange | Flange Included |
| Includes Union | No Union Included |
| Connection Standard | Flange |
| NSF Certifications for Food and Drinking Water | NSF 372 |
Description

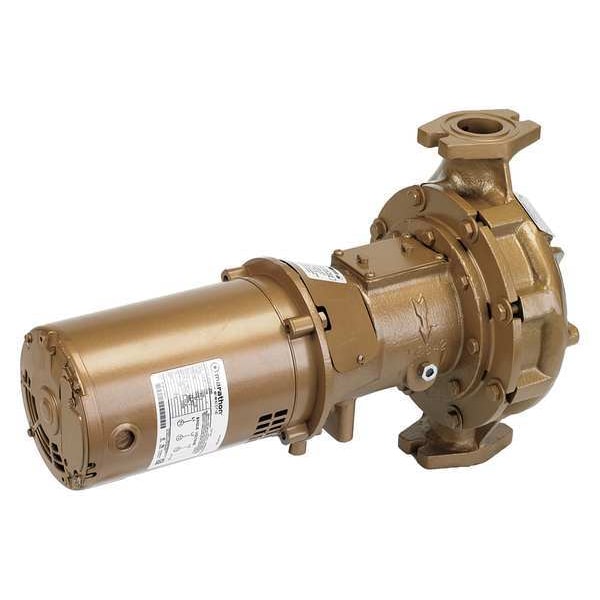

The Armstrong 116480LF-137A is a three-piece hot water circulating pump from the H-64 series. This pump circulates hot water in a hydronic system, operating at 208-240/460V AC, three-phase, with 3/4 hp and a flange connection for a 1 1/2 in intake pipe.
