- Voltage: 115V AC
- Phase: Single
- Horsepower: 3/4 hp
- Inlet/Outlet Size: 2 in
- Compatible Intake Pipe Size: 2 in
- Compatible Discharge Pipe Size: 2 in
Specifications
| Part Number | 116451MF-132 |
| Brand | Armstrong |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 3/4 hp |
| Series | H-54 |
| Inlet/Outlet Size | 2 in |
| Face to Face Dimension | 11 1/2 in |
| Overall Width | 16.5 in |
| Overall Length | 20 in |
| Overall Height | 11.5 in |
| Compatible Intake Pipe Size | 2 in |
| Manufacturer Warranty Length | 2 yr |
| Compatible Discharge Pipe Size | 2 in |
| For Inlet Pipe Diameter | 2 in |
| For Discharge Pipe Diameter | 2 in |
| Item | Hydronic Circulating Pump |
| Pump Type | 3-Piece |
| Number of Speeds | 1 |
| Max. GPM @ Head | 80 gpm @ 13 ft |
| Maximum Feet of Head | 30 ft |
| Min. GPM @ Head | 12 gpm @ 25 ft |
| Connection Type | Flange |
| Shaft Material | Stainless Steel |
| Pump Mount | In Line |
| Compliance | NSF-372 |
| Impeller Material | Metal |
| Loop Configuration | Closed |
| Mechanical Seal | Maintenance Free |
| Drive Type | Direct |
| Thermal Protection | yes |
| Includes | Flange Gaskets |
| Features | Compact, High Performance, Permanently Lubricated Ball Bearings |
| Shut-Off | 45 ft |
| Amps | 13.80 A |
| Best Efficiency GPM @ Head | 42 gpm @ 25 ft |
| Nameplate Voltage | 115V AC |
| Maximum Flow Rate @ 10 Feet of Head | 110 gpm |
| Maximum Flow Rate @ 5 Feet of Head | 120 gpm |
| Pump Housing Material | Cast Iron |
| Compatible Media Type | Water |
| Maximum Flow Rate @ 20 Feet of Head | 81 gpm |
| Maximum Flow Rate @ 1 Feet of Head | 126 gpm |
| Maximum Flow Rate @ 15 Feet of Head | 105 gpm |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Maximum Flow Rate @ 30 Feet of Head | 0 gpm |
| Flange or Union Included | Yes |
| Maximum Operating Pressure | 175 psi |
| For Use With Potable Systems | No |
| Maximum Media Temperature | 225 Degrees F |
| Maximum RPM | 1,800 RPM |
| Body Gasket Material | Silicon Carbide |
| Series Family | S&H |
| Pipe to Flange or Union Connection Type | FNPT |
| Maximum Flow Rate @ 25 Feet of Head | 55 gpm |
| Includes Flange | Flange Included |
| For Low Lead Compliance Level | EX |
| Flow Rate - Maximum | 95 gpm |
| Includes Volute | Volute Included |
| Pump Casing Material | Cast Iron |
| Connection Standard | Flange |
| Includes Union | No Union Included |
| Feet of Head - Maximum | 30 ft |
| Revolutions Per Minute - Maximum | 1,800 RPM |
| Motor Enclosure Design | Open Drip Proof |
| Operating Pressure - Maximum | 175 psi |
| Media Temperature - Maximum | 225 Degrees F |
| Media Temperature - Minimum | -4 Degrees F |
| Full Load Current | 13.80 A |
Description

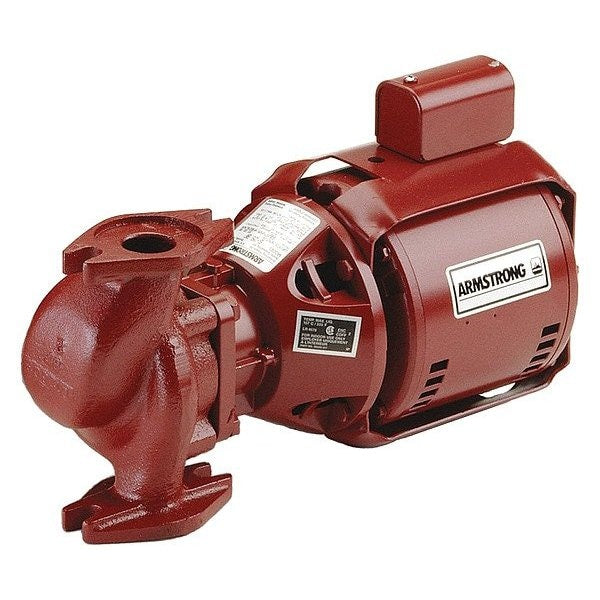

The Armstrong 116451MF-132 is a hydronic circulating pump from the H-54 series. This 3/4 hp, single-phase, 115V AC pump circulates water in a hydronic system. It features a 3-piece pump design with 2-inch intake and discharge pipe connections.
