- Voltage: 115V AC
- Phase: Single
- Horsepower: 1/6 hp
- Inlet/Outlet Size: 1 in to 1-1/2 in
- Compatible Discharge Pipe Size: 1 in, 1 1/4 in, 1 1/2 in
- Compatible Intake Pipe Size: 1 in, 1 1/4 in, 1 1/2 in
Specifications
| Part Number | 103405LF |
| Brand | Bell & Gossett |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 1/6 hp |
| Series | NBF-45 |
| Inlet/Outlet Size | 1 in to 1-1/2 in |
| Face to Face Dimension | 8 1/2 in |
| Compatible Discharge Pipe Size | 1 in, 1 1/4 in, 1 1/2 in |
| Overall Width | 5.75 in |
| Overall Length | 7.38 in |
| Overall Height | 8.5 in |
| Manufacturer Warranty Length | 3 yr |
| Compatible Intake Pipe Size | 1 in, 1 1/4 in, 1 1/2 in |
| For Discharge Pipe Diameter | 1 in, 1 1/4 in, 1 1/2 in |
| For Inlet Pipe Diameter | 1 in, 1 1/4 in, 1 1/2 in |
| Item | Circulating Pump |
| Pump Type | Standard |
| Number of Speeds | 3 |
| Max. GPM @ Head | 44 gpm @ 1 ft |
| Maximum Feet of Head | 28 ft |
| Min. GPM @ Head | 5 gpm @ 25 ft |
| Connection Type | Flange |
| Shaft Material | No Mechanical Seal |
| Loop Configuration | Open or Closed |
| Drive Type | Direct |
| Impeller Material | Plastic |
| Thermal Protection | yes |
| Shut-Off | 27 1/2 ft |
| Pump Mount | Noryl(R) |
| Amps | 2.3 A |
| Mechanical Seal | 3-Speed Motor, Maintenance Free, Wet-Rotor |
| Best Efficiency GPM @ Head | 25 gpm @ 14 ft |
| Standards | CSA Certified, UL Listed |
| Flange or Union Included | No |
| Maximum Operating Pressure | 150 psi |
| Maximum Flow Rate @ 20 Feet of Head | 15 gpm |
| Frequency | 60 Hz |
| Maximum Flow Rate @ 10 Feet of Head | 31 gpm |
| Series Family | NBF |
| Pump Housing Material | Bronze |
| Maximum Media Temperature | 225 Degrees F |
| Rotor Type | Wet |
| Maximum Flow Rate @ 1 Feet of Head | 44 gpm |
| Maximum RPM | 3,300 RPM |
| Maximum Flow Rate @ 15 Feet of Head | 23 gpm |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Maximum Flow Rate @ 25 Feet of Head | 5 gpm |
| Nameplate Voltage | 115V AC |
| Compatible Media Type | Water |
| For Use With Potable Systems | Yes |
| Maximum Flow Rate @ 5 Feet of Head | 39 gpm |
| Includes Volute | Volute Included |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Full Load Current | 2.3 A |
| For Low Lead Compliance Level | CE |
| Pump Casing Material | Bronze |
| Flow Rate - Maximum | 45 gpm |
| Includes Flange | No Flange Included |
| Connection Standard | Flange |
| Operating Pressure - Maximum | 150 psi |
| Revolutions Per Minute - Maximum | 3,300 RPM |
| Feet of Head - Maximum | 28 ft |
| Media Temperature - Minimum | 14 Degrees F |
| Media Temperature - Maximum | 225 Degrees F |
Description

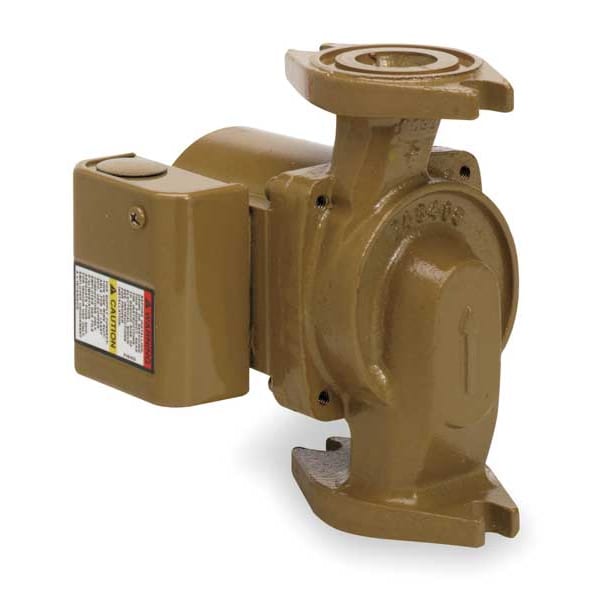

The Bell & Gossett 103405LF is a 1/6 hp, 115V AC, single-phase hydronic circulating pump from the NBF-45 series. This pump circulates water in a hydronic system to transfer heat. It features a flange connection and is compatible with discharge and intake pipe sizes of 1 in, 1 1/4 in, and 1 1/2 in.
