- Voltage: 115V AC
- Phase: Single
- Horsepower: 1/25 hp
- Inlet/Outlet Size: 3/4 in to 1-1/2 in
- Compatible Intake Pipe Size: 1/2 in, 3/4 in
- Compatible Discharge Pipe Size: 1/2 in, 3/4 in
Specifications
| Part Number | 103255LF |
| Brand | Bell & Gossett |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 1/25 hp |
| Inlet/Outlet Size | 3/4 in to 1-1/2 in |
| Series | NBF-22U |
| Face to Face Dimension | 6 1/8 in |
| Overall Width | 4.88 in |
| Manufacturer Warranty Length | 3 yr |
| Overall Height | 6.13 in |
| Compatible Intake Pipe Size | 1/2 in, 3/4 in |
| Compatible Discharge Pipe Size | 1/2 in, 3/4 in |
| Overall Length | 5.06 in |
| For Discharge Pipe Diameter | 1/2 in, 3/4 in |
| For Inlet Pipe Diameter | 1/2 in, 3/4 in |
| Item | Circulating Pump |
| Pump Type | Standard |
| Number of Speeds | 1 |
| Max. GPM @ Head | 20.6 gpm @ 1 ft |
| Maximum Feet of Head | 15 ft |
| Min. GPM @ Head | 5.2 gpm @ 20 ft |
| Connection Type | Union |
| Drive Type | Direct |
| Pump Mount | Noryl(R) |
| Shut-Off | 15 ft |
| Thermal Protection | yes |
| Amps | 0.80 A |
| Loop Configuration | Open |
| Shaft Material | No Mechanical Seal |
| Mechanical Seal | Sealless |
| Impeller Material | Plastic |
| Best Efficiency GPM @ Head | 10 gpm @ 8 ft |
| Standards | CSA Certified, UL Listed |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Maximum Operating Pressure | 150 psi |
| Maximum Flow Rate @ 1 Feet of Head | 21 gpm |
| Rotor Type | Wet |
| Flange or Union Included | No |
| Maximum Media Temperature | 230 Degrees F |
| Maximum Flow Rate @ 10 Feet of Head | 8 gpm |
| Nameplate Voltage | 115V AC |
| Maximum Flow Rate @ 5 Feet of Head | 15 gpm |
| Maximum RPM | 2,940 RPM |
| Series Family | NBF |
| Frequency | 60 Hz |
| For Use With Potable Systems | Yes |
| Maximum Flow Rate @ 15 Feet of Head | 0 gpm |
| Pump Housing Material | Bronze |
| Compatible Media Type | Water |
| Includes Union | No Union Included |
| Full Load Current | 0.80 A |
| For Low Lead Compliance Level | CE |
| Pump Casing Material | Bronze |
| Media Temperature - Minimum | 14 Degrees F |
| Feet of Head - Maximum | 15 ft |
| Media Temperature - Maximum | 230 Degrees F |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Connection Standard | Union |
| Flow Rate - Maximum | 22 gpm |
| Includes Volute | Volute Included |
| Revolutions Per Minute - Maximum | 2,940 RPM |
| Operating Pressure - Maximum | 150 psi |
Description

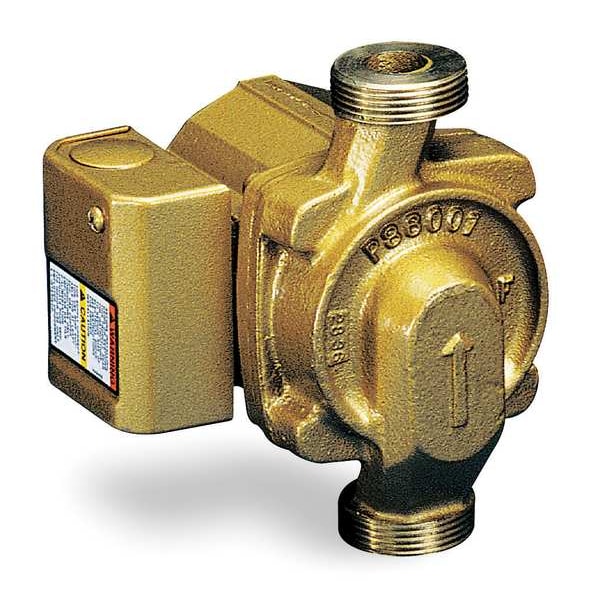

The Bell & Gossett 103255LF is a NBF-22U series hydronic circulating pump with a standard pump type. This pump circulates water in a hydronic system, powered by a 1/25 hp, 115V AC, single-phase motor. It is compatible with 1/2 in and 3/4 in intake and discharge pipe sizes and features a union connection.
