- Actuation Mechanism: Pressure
- Air Consumption: 10.98 cfm
- Maximum Flow Rate: 7.59 cfm
- Maximum Operating Temperature: 60 Degrees C
- Maximum: Supply Pressure 6 bar
- Maximum Vacuum Pressure: 6 bar
Specifications
| Part Number | 10.02.01.00568 |
| Brand | Schmalz |
| Item | Item Basic Ejector |
| Actuation Mechanism | Pressure |
| Air Consumption | 10.98 cfm |
| Maximum Flow Rate | 7.59 cfm |
| Maximum Operating Temperature | 60 Degrees C |
| Maximum | Supply Pressure 6 bar |
| Maximum Vacuum Pressure | 6 bar |
| Minimum Operating Temperature 0 Degrees | C |
| Minimum | Supply Pressure 3 bar |
| Minimum | Vacuum Pressure 3 bar |
| Nozzle Diameter | 2.5 mm |
| Overall Depth | 20 mm |
| Overall Height | 45.5 mm |
| Overall Length | 168 mm |
| Pressure Port Gender | Not Applicable |
| Pressure Port Size | 8 mm |
| Pressure Port Type | Tube |
Description

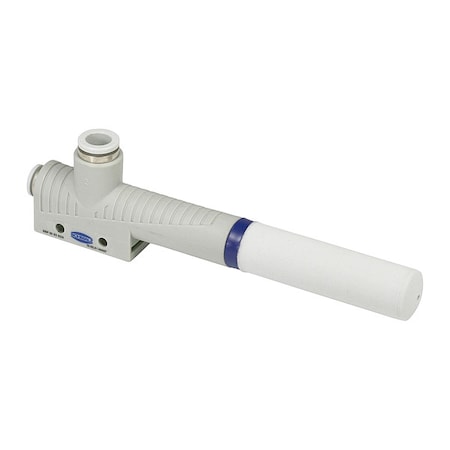

The Schmalz 10.02.01.00568 is a Basic Ejector with a pressure actuation mechanism. It has an air consumption of 10.98 cfm, a maximum flow rate of 7.59 cfm, and a 2.5 mm nozzle diameter. The unit measures 168 mm in length, 45.5 mm in height, and 20 mm in depth, with an 8 mm tube pressure port.
Confirm the part number against your existing unit or equipment before ordering to ensure correct fit.
