- Pipe Size - Regulators: 3/8 in
- Max. Inlet Pressure - Regulators: 250 psi
- Max. Temp. - Regulators: 175 Degrees F
- Pipe Size (Regulators): 3/8"
- Air Inlet Size: 3/8 in
- Pressure Gauge Port Size: 1/4 in
Specifications
| Part Number | 06R213AC |
| Brand | Parker |
| Pipe Size - Regulators | 3/8 in |
| Max. Inlet Pressure - Regulators | 250 psi |
| Adjustment Range - Regulators | 0 to 125 psi |
| Max. Temp. - Regulators | 175 Degrees F |
| Overall Height - Regulators | 6.08 in |
| Pipe Size (Regulators) | 3/8" |
| Overall Width (Regulators) | 2.84" |
| Overall Width - Regulators | 2.84 in |
| Overall Height (Regulators) | 6.08" |
| Overall Length | 2.74 in |
| Overall Depth | 2 13/16 in |
| Air Inlet Size | 3/8 in |
| Overall Height | 6 in |
| Pressure Gauge Port Size | 1/4 in |
| Overall Width | 2 3/4 in |
| Air Outlet Size | 3/8 in |
| Item | Compressed Air Regulator |
| Adjustment Knob | Nonrising |
| Valve Design | 1/4 in NPT |
| Body Material | Zinc |
| Adjustment Range (Regulators) | 0 to 125 psi |
| Series | 06R |
| Max. Temp. (Regulators) | 175 Degrees F |
| Includes | (2) Gauge Plugs, Regulator |
| Air Flow Direction | Left to Right |
| Max. Flow - Regulators | 60 cfm |
| Gauge Port | 1/4 in NPT |
| Max. Flow (Regulators) | 60 cfm |
| Max. Inlet Pressure (Regulators) | 250 psi |
| Maximum Operating Temperature | 175 Degrees F |
| Minimum Operating Temperature | 32 Degrees F |
| For Substance Type | Air |
| Maximum Flow Rate | 60 cfm |
| Number of Air Outlets | 1 |
| Adjustment Location | Top |
| Pressure Gauge Included | No |
| For Fluid Type | Air |
| Air Inlet Type | NPT |
| Air Inlet Gender | Female |
| Regulator Type | Relieving |
| Adjustment Mechanism Material | Steel |
| System Location | Air Line |
| Air Outlet Type | NPT |
| Adjustment Mechanism | Knob |
| Number of Air Inlets | 1 |
| Minimum Regulated Pressure | 2 psi |
| Minimum Operating Pressure | 18 psig |
| Pressure Gauge Port Type | NPT |
| Weight | 1.5 lb |
| Seal Material | Nitrile |
| Air Outlet Gender | Female |
| Maximum Operating Pressure | 125 psi |
| Maximum Regulated Pressure | 125 psi |
Description

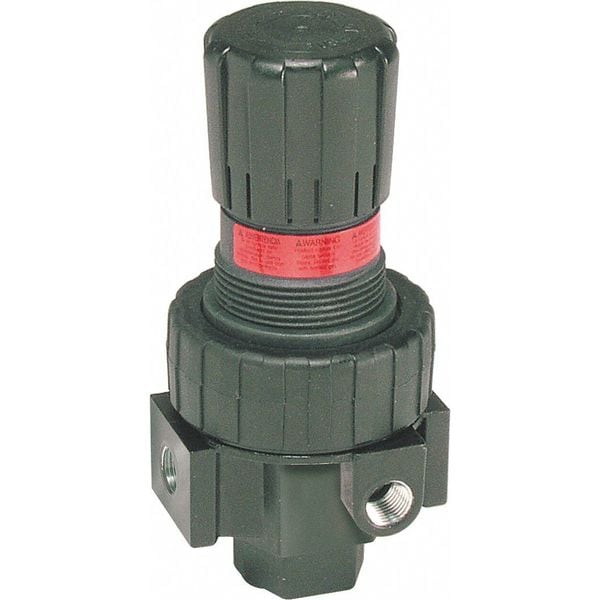

The Parker 06R213AC is a compressed air regulator from the 06R series. This type of part controls downstream air pressure by reducing a higher inlet pressure to a stable, lower outlet pressure. It has a maximum inlet pressure of 250 psi and a maximum temperature rating of 175 degrees F, and is constructed with a zinc body.
