- Voltage: 9 to 32V
- Process Connection Size: 1/4 in
- Maximum Pressure: 232 psi
- Type of Pressure: Sealed Gauge
- Housing Material: Stainless Steel
- Minimum Pressure: 0 psi
Specifications
| Part Number | 060G3946 |
| Brand | Danfoss |
| For Use With | Pumps; Compressors; Pneumatics and Water Treatment |
| Voltage | 9 to 32V |
| Features | Operating Temperature |
| Standards | ANSI/ASME B1.20.1, ATEX Ex ec IIA T4 Gc, EN 175301-803-A, UK RoHS Compliance |
| Response Time | 4 msec |
| Process Connection Size | 1/4 in |
| Item | Pressure Transmitter |
| Maximum Pressure | 232 psi |
| Type of Pressure | Sealed Gauge |
| Series | MBS 3000 |
| Housing Material | Stainless Steel |
| Electrical Connections | DIN 43650 Form A Connector |
| Weight | 0.125 kg |
| IP Rating | IP65 |
| Process Connection Gender | Male |
| Output | 4 to 20mA |
| Minimum Pressure | 0 psi |
| Power Required | 9 to 32V DC |
| Intrinsically Safe | No |
| Pressure Units | psi/bar |
| Process Connection Type | NPT |
| Accuracy | 0.5% of Full Scale |
| Overpressure | 1392 psi |
| Process Media Temperature - Maximum | 185 Degrees F |
| Pressure Measurement - Maximum | 232 psi |
| Pressure Measurement - Minimum | 0 psi |
| Pressure Type Measured | Sealed Gauge |
| Electrical Connection | DIN 43650 Form A Connector |
| Output Power | 4 to 20mA |
| Input Voltage | 9 to 32V DC |
| Intrinsic Safety | Not Specified Intrinsically Safe |
| Process Media Temperature - Minimum | -40 Degrees F |
| Operating Temperature - Maximum | 185 Degrees F |
| Operating Temperature - Minimum | -40 Degrees F |
Description

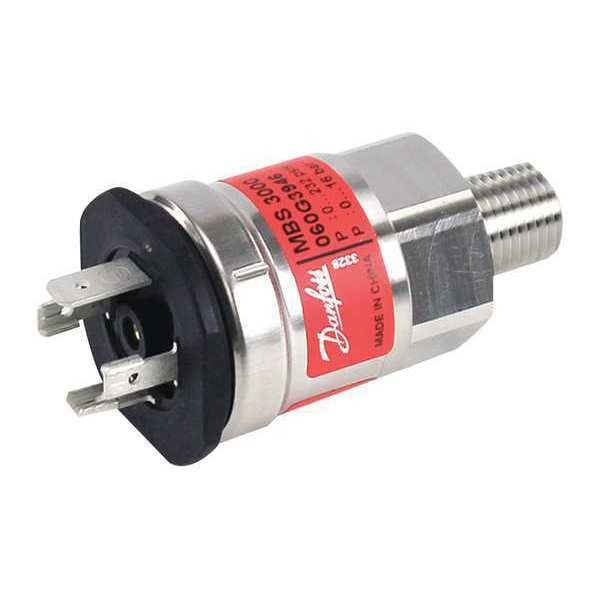

The Danfoss 060G3946 is a sealed gauge pressure transmitter. It converts pressure into an electrical signal, operating within a 9 to 32V range and a maximum pressure of 232 psi. This sensor is designed for use with pumps, compressors, and pneumatics and water treatment equipment, and complies with ANSI/ASME B1.20.1, ATEX Ex ec IIA T4 Gc, EN 175301-803-A, and UK RoHS standards.
