- Voltage: 115V AC
- Phase: Single
- Horsepower: 1/8 hp
- Inlet/Outlet Size: 3/4 in to 1-1/2 in
- Compatible Intake Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
- Compatible Discharge Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Specifications
| Part Number | 009-SF5 |
| Brand | Taco |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 1/8 hp |
| Inlet/Outlet Size | 3/4 in to 1-1/2 in |
| Series | 009 |
| Face to Face Dimension | 6 3/8 in |
| Overall Width | 5.5 in |
| Overall Length | 7 in |
| Compatible Intake Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Compatible Discharge Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Manufacturer Warranty Length | 3 yr |
| For Discharge Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| For Inlet Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Item | Circulating Pump |
| Pump Type | Standard |
| Number of Speeds | 1 |
| Max. GPM @ Head | 10.5 gpm @ 1 ft |
| Maximum Feet of Head | 35 ft |
| Min. GPM @ Head | 5 gpm @ 25 ft |
| Connection Type | Flange |
| Standards | NSF, UL-CUS |
| Compliance | Low Lead,NSF-372 |
| Pump Mount | In Line |
| Shaft Material | Ceramic |
| Loop Configuration | Open |
| Best Efficiency GPM @ Head | 6 gpm @ 20 ft |
| Features | Maintenance Free, Wet Rotor |
| Mechanical Seal | No |
| Impeller Material | Noryl(R) |
| Amps | 1.4 A |
| Thermal Protection | Impedance |
| Shut-Off | 35 ft |
| Drive Type | Direct |
| Includes | Flange Gaskets, Impedance Thermal Proctection |
| Maximum Flow Rate @ 20 Feet of Head | 6 gpm |
| Body Gasket Material | EPDM |
| Maximum Flow Rate @ 10 Feet of Head | 8 gpm |
| Nameplate Voltage | 115V AC |
| Pump Housing Material | Stainless Steel |
| Maximum Flow Rate @ 25 Feet of Head | 5 gpm |
| For Use With Potable Systems | Yes |
| Maximum Operating Pressure | 150 psi |
| Rotor Type | Wet |
| Flange or Union Included | No |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Maximum Flow Rate @ 15 Feet of Head | 7 gpm |
| Frequency | 60 Hz |
| Maximum RPM | 3,250 RPM |
| Maximum Media Temperature | 230 Degrees F |
| Compatible Media Type | Water |
| Maximum Flow Rate @ 1 Feet of Head | 10 gpm |
| Maximum Flow Rate @ 30 Feet of Head | 3 gpm |
| Minimum Media Temperature | 40 Degrees F |
| Series Family | 00 |
| Maximum Flow Rate @ 5 Feet of Head | 9 gpm |
| Pump Casing Material | Stainless Steel |
| Includes Flange | No Flange Included |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| For Low Lead Compliance Level | CE |
| Flow Rate - Maximum | 10 gpm |
| Media Temperature - Maximum | 230 Degrees F |
| Revolutions Per Minute - Maximum | 3,250 RPM |
| Feet of Head - Maximum | 35 ft |
| Includes Volute | Volute Included |
| Full Load Current | 1.4 A |
| Media Temperature - Minimum | 40 Degrees F |
| Connection Standard | Flange |
| Operating Pressure - Maximum | 150 psi |
Description

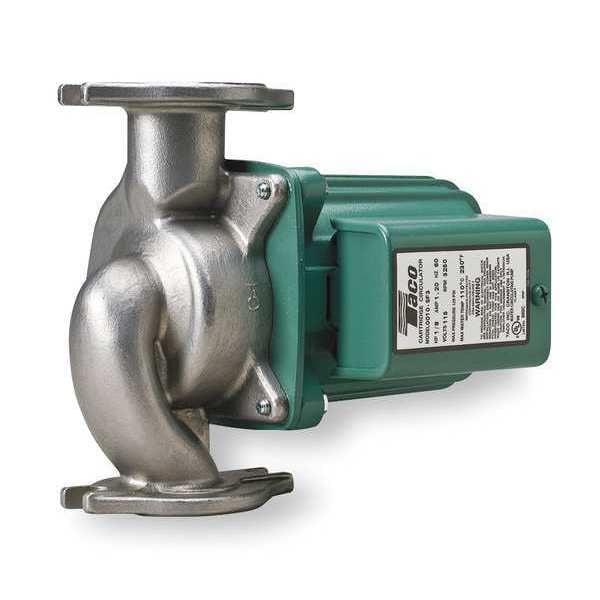

The Taco 009-SF5 is a 1/8 hp, 115V AC single-phase circulating pump designed for potable water systems. This pump circulates water through a closed loop to maintain consistent temperature or flow. It features a stainless steel flange connection and is compatible with intake and discharge pipe sizes of 3/4 in, 1 in, 1 1/4 in, and 1 1/2 in.
