- HP: 5
- RPM Range: 1,701-1,800
- Nameplate RPM: 1,755
- Voltage: 208-230/460V AC
- Motor Frame Material: Cast Iron
- Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Specifications
| Part Number | 00518ET3E184JM-W22 |
| Brand | Weg |
| Motor Design | 3-Phase |
| HP | 5 |
| RPM Range | 1,701-1,800 |
| Nameplate RPM | 1,755 |
| Voltage | 208-230/460V AC |
| Overall Length | 17 3/8 in |
| Length Less Shaft | 13 1/8 in |
| Shaft Length | 4 1/4 in |
| Shaft Dia. | 7/8 in |
| Body Dia. | 9.4 in |
| Height | 9 3/8 in |
| Bolt Circle Dia. | 5 7/8 in |
| Manufacturers Warranty Length | 3 yr |
| Item | Close-Coupled Pump Motor |
| Frame | 184JM |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.25 |
| Inverter Rated | Yes |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Cast Iron |
| Motor Thermal Protection | None |
| Motor Shaft Design | JM Threaded |
| Ins. Class | F |
| CC Number | CC029A |
| Nominal Efficiency | 89.5 % |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Standards | CSA (LR38324), CSA (LR50962), UL (E104590) |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Hz | 60 Hz |
| Motor Bearings | Ball |
| Full Load Amps | 14.3-12.9/6.4 |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Duty | Continuous |
| Phase | Three |
| Frame Material | Cast Iron |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Service Factor @ 50Hz | 1.25 |
| HP @ 50Hz | 4, 5 |
| Usable @ 200V | No |
| Voltage @ 50Hz | 380/400/415 |
| Motor Mounting Position | Horizontal |
| Weight | 103 lb |
| RPM @ 50Hz | 1,440 |
| NEMA Design | B |
| Shaft Material | Carbon Steel |
| No. of Speeds | 1 |
| Usable @ 208V | Yes |
| Inverter Rating | 1000:1 |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Conduit Box Position | F1 |
| Application | Industrial and Commercial Water Pumping, Processing, Transferring and Circulating Pumps |
| Shaft Type | JM Threaded |
Description

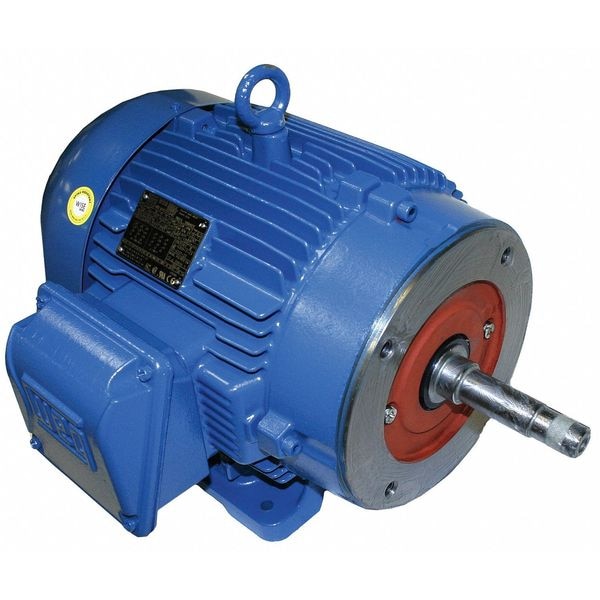

The Weg 00518ET3E184JM-W22 is a 5 HP close-coupled pump motor. This totally enclosed fan-cooled motor provides the rotational force to drive a pump impeller, operating at a nameplate speed of 1,755 RPM on a 208-230/460V AC three-phase power supply. It features a cast iron frame with a face/base mounting configuration.
