- Voltage: 115V AC
- Phase: Single
- Horsepower: 1/6 hp
- Inlet/Outlet Size: 3/4 in to 1-1/2 in
- Compatible Discharge Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
- Compatible Intake Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Specifications
| Part Number | 0013-F3 |
| Brand | Taco |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 1/6 hp |
| Inlet/Outlet Size | 3/4 in to 1-1/2 in |
| Series | 0013 |
| Face to Face Dimension | 6 1/2 in |
| Overall Width | 6 in |
| Overall Length | 7.5 in |
| Overall Height | 6.5 in |
| Compatible Discharge Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Compatible Intake Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Manufacturer Warranty Length | 3 yr |
| For Inlet Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| For Discharge Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Item | Hydronic Circulating Pump |
| Pump Type | Standard |
| Number of Speeds | 1 |
| Max. GPM @ Head | 33 gpm @ 1 ft |
| Maximum Feet of Head | 33 ft |
| Min. GPM @ Head | 5 gpm @ 30 ft |
| Connection Type | Flange |
| Standards | NSF, UL-CUS |
| Shut-Off | 34 ft |
| Thermal Protection | Impedance |
| Impeller Material | Polypropylene |
| Mechanical Seal | No |
| Shaft Material | Ceramic |
| Amps | 2.0 A |
| Loop Configuration | Closed |
| Features | Maintenance Free, Wet Rotor |
| Best Efficiency GPM @ Head | 20 gpm @ 17 ft |
| Includes | Flange Gaskets, Impedance Thermal Proctection |
| Drive Type | Direct |
| Pump Mount | In Line |
| Rotor Type | Wet |
| Maximum Flow Rate @ 20 Feet of Head | 17 gpm |
| Maximum Flow Rate @ 5 Feet of Head | 30 gpm |
| Series Family | 00 |
| Frequency | 60 Hz |
| Maximum Flow Rate @ 1 Feet of Head | 34 gpm |
| Body Gasket Material | EPDM |
| For Use With Potable Systems | Yes |
| Maximum Flow Rate @ 30 Feet of Head | 5 gpm |
| Maximum Flow Rate @ 10 Feet of Head | 26 gpm |
| Maximum Operating Pressure | 150 psi |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Maximum Flow Rate @ 15 Feet of Head | 21 gpm |
| Maximum Flow Rate @ 25 Feet of Head | 11 gpm |
| Pump Housing Material | Cast Iron |
| Maximum Media Temperature | 230 Degrees F |
| Maximum RPM | 3,250 RPM |
| Nameplate Voltage | 115V AC |
| Minimum Media Temperature | 40 Degrees F |
| Flange or Union Included | No |
| Media Temperature - Minimum | 40 Degrees F |
| Operating Pressure - Maximum | 150 psi |
| Full Load Current | 2.0 A |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Connection Standard | Flange |
| For Low Lead Compliance Level | EX |
| Includes Flange | No Flange Included |
| Revolutions Per Minute - Maximum | 3,250 RPM |
| Pump Casing Material | Cast Iron |
| Includes Volute | Volute Included |
| Flow Rate - Maximum | 34 gpm |
| Media Temperature - Maximum | 230 Degrees F |
| Feet of Head - Maximum | 33 ft |
Description

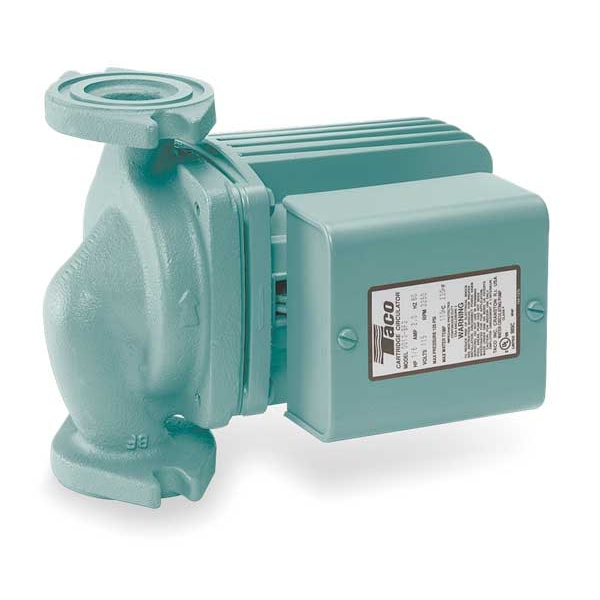

The Taco 0013-F3 is a 1/6 hp hydronic circulating pump, part of the 0013 series, operating on 115V AC single phase. This standard pump circulates water in a hydronic system. It is compatible with discharge and intake pipe sizes of 3/4 in, 1 in, 1 1/4 in, and 1 1/2 in.
