- Voltage: 115V AC
- Phase: Single
- Horsepower: 1/8 hp
- Inlet/Outlet Size: 3/4 in to 1-1/2 in
- Compatible Intake Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
- Compatible Discharge Pipe Size: 3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Specifications
| Part Number | 0010-F3 |
| Brand | Taco |
| Voltage | 115V AC |
| Phase | Single |
| Horsepower | 1/8 hp |
| Series | 0010 |
| Inlet/Outlet Size | 3/4 in to 1-1/2 in |
| Face to Face Dimension | 6 3/8 in |
| Overall Width | 5.38 in |
| Overall Height | 6.38 in |
| Overall Length | 7.25 in |
| Compatible Intake Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Compatible Discharge Pipe Size | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Manufacturer Warranty Length | 3 yr |
| For Inlet Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| For Discharge Pipe Diameter | 3/4 in, 1 in, 1 1/4 in, 1 1/2 in |
| Item | Hydronic Circulating Pump |
| Pump Type | Standard |
| Number of Speeds | 1 |
| Max. GPM @ Head | 30.5 gpm @ 1 ft |
| Maximum Feet of Head | 10 ft |
| Min. GPM @ Head | 4 gpm @ 10 ft |
| Connection Type | Flange |
| Includes | Flange Gaskets, Impedance Thermal Proctection |
| Shut-Off | 10 ft |
| Loop Configuration | Closed |
| Standards | NSF, UL-CUS |
| Pump Mount | In Line |
| Features | Maintenance Free, Wet Rotor |
| Amps | 1.10 A |
| Mechanical Seal | No |
| Drive Type | Direct |
| Shaft Material | Ceramic |
| Thermal Protection | Impedance |
| Impeller Material | Polypropylene |
| Best Efficiency GPM @ Head | 18 gpm @ 7 ft |
| Frequency | 60 Hz |
| Maximum Flow Rate @ 15 Feet of Head | 0 gpm |
| Compatible Media Type | Water |
| Minimum Media Temperature | 40 Degrees F |
| For Use With Potable Systems | Yes |
| Maximum Operating Pressure | 150 psi |
| Maximum Media Temperature | 230 Degrees F |
| Maximum Flow Rate @ 50 Feet of Head | [DELETE] |
| Maximum Flow Rate @ 5 Feet of Head | 22 gpm |
| Maximum RPM | 3,250 RPM |
| Body Gasket Material | EPDM |
| Pump Housing Material | Cast Iron |
| Series Family | 00 |
| Nameplate Voltage | 115V AC |
| Flange or Union Included | No |
| Maximum Flow Rate @ 10 Feet of Head | 0 gpm |
| Rotor Type | Wet |
| Maximum Flow Rate @ 1 Feet of Head | 32 gpm |
| For Low Lead Compliance Level | EX |
| Feet of Head - Maximum | 10 ft |
| Includes Volute | Volute Included |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Includes Flange | No Flange Included |
| Full Load Current | 1.10 A |
| Media Temperature - Minimum | 40 Degrees F |
| Flow Rate - Maximum | 33 gpm |
| Operating Pressure - Maximum | 150 psi |
| Pump Casing Material | Cast Iron |
| Connection Standard | Flange |
| Revolutions Per Minute - Maximum | 3,250 RPM |
| Media Temperature - Maximum | 230 Degrees F |
Description

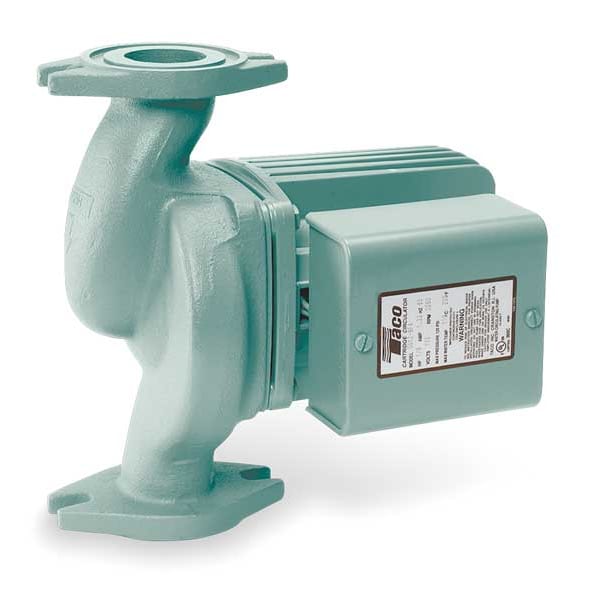

The Taco 0010-F3 is a hydronic circulating pump from the 0010 series, operating at 1/8 hp, 115V AC, single phase. This standard pump circulates water in a hydronic system. It is compatible with intake and discharge pipe sizes of 3/4 in, 1 in, 1 1/4 in, and 1 1/2 in.
