- Phase: 1
- Voltage: 120/240V AC
- Voltage Protection Rating: 1200V (L-L), 700V (L-N)
- Max. Surge Current per Phase: 36 kA
- Max. Continuing Operating Voltage: 150V AC
- Enclosure NEMA Rating: NEMA 4X
Specifications
| Part Number | SDSA1175 |
| Brand | Square D |
| CAD Drawing | 2D Drawing (.pdf) |
| Mounting Style | Chase Nipple |
| Phase | 1 |
| Voltage | 120/240V AC |
| Number of Poles | 2 |
| Voltage Protection Rating | 1200V (L-L), 700V (L-N) |
| Length | 2 1/2 in |
| Depth | 2.7 in |
| Width | 2 1/4 in |
| CAD Available | Yes |
| Item | Surge Protection Device |
| Number of Wires | 3 Wires |
| Modes of Protection | L-L, L-N |
| Max. Surge Current Per Mode | 36kA |
| Max. Surge Current per Mode | 36 kA |
| Max. Surge Current per Phase | 36 kA |
| Nominal Discharge Current | 10 kA |
| Short Circuit Current Rating | 25kA |
| Modular | No |
| Filtering | No |
| Max. Continuing Operating Voltage | 150V AC |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Material | Plastic |
| Wire Gauge | 14 AWG |
| Includes | LED Status Indicator |
| Joules | 1,304 |
| Standards | CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I |
| Modular / Nonmodular | Nonmodular |
| Max. Operating Temp. | 149 Degrees F |
| System Connection | Parallel |
| Amps | 36 kA |
| Color | Black |
| UL SPD Type | Type 1 |
| Basic Material | Nonmetallic |
| Status Indicator | LED Light |
| Includes Surge Counter | No |
Description

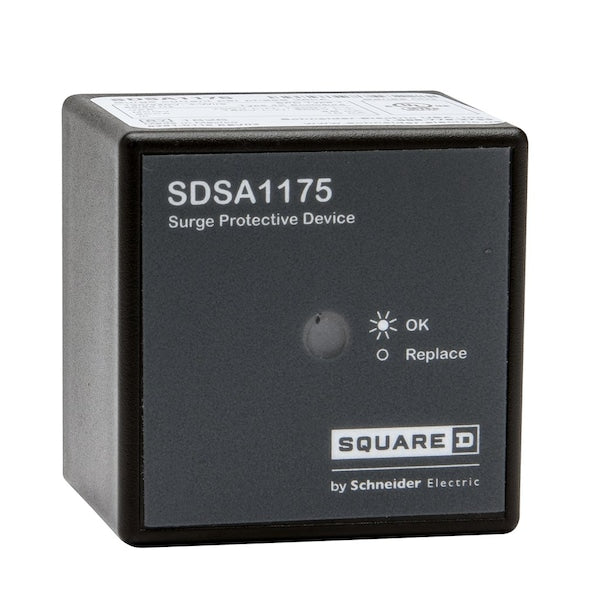

The Square D SDSA1175 is a surge protection device (secondary surge arrester) for wiring and connectors. It protects equipment from voltage transients on a 1-phase, 120/240V AC system, with a maximum surge current per phase of 36 kA and a short circuit current rating of 25kA. The device has a voltage protection rating of 1200V (L-L) and 700V (L-N), and is housed in a NEMA 4X rated enclosure.
