- Nominal Pipe Size: 1-1/2 in
- Center Line Pipe Center Size: 5-1/2 in
- Orifice Diameter: 1-5/8 in
- Voltage: 120V AC
- Seal Material: NBR
- Operating Pressure Differential - Maximum: 5 psi Air/Inert Gas, Fuel Gas, Water
Specifications
| Part Number | JB8214270CSA |
| Brand | Asco |
| For Media | Fuel Oil, Gas |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Nominal Pipe Size | 1-1/2 in |
| Inlet Connection Type | NPTF |
| Overall Height | 6-31/32 in |
| Center Line Pipe Center Size | 5-1/2 in |
| Overall Length | 5-15/16 in |
| Overall Width | 5-3/8 in |
| Orifice Diameter | 1-5/8 in |
| Outlet Connection Type | NPTF |
| Voltage | 120V AC |
| Valve Type | High Flow Gas Shut Off, Test Port |
| Operation Type | Direct Acting |
| Seal Material | NBR |
| Operating Pressure Differential - Maximum | 5 psi Air/Inert Gas, Fuel Gas, Water |
| Operating Pressure Differential - Minimum | 0 psi Fuel Gas |
| Item | Solenoid Valve |
| Coil Insulation Class | F |
| Body Material | Aluminum |
| Valve Design | 2-Way/2-Position |
| BtuH | 1,887,200 BtuH |
| Ambient Temp. Range | -40 Degrees to 125 Degrees F |
| Electrical Connections | 1/2" Conduit w/18" Leads |
| Coil Enclosure | With Junction Box |
| Standards | CSA, FM, UL Listed |
| Application | Finishing, Low Gas Supply, Painting, Space Constrained |
| Ambient Temperature - Minimum | -40 Degrees F |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Ambient Temperature - Maximum | 140 Degrees F |
| Operating Pressure Differential Fuel Gas - Minimum | 0 psi |
| Valve Positions | 2-Position |
| Operating Pressure Differential Fuel Gas - Maximum | 5 psi |
| Actuator Type | Double Solenoid |
| Operating Pressure Differential Light Oil - Maximum | Not Rated |
| Frequency | 50 Hz, 60 Hz |
| Thread Type | NPT |
| Operating Pressure Differential Hot Water - Maximum | Not Rated |
| Fluid Temperature - Maximum | 125 Degrees F |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| NEMA Enclosure Rating | 1 |
| Operating Pressure Differential Water - Maximum | 5 psi |
| Environmental Rating | Indoor, Outdoor |
| Gas Capacity | 1,887,200 BtuH |
| Coefficient of Volume (Cv) | 35 |
| Wattage | 20 W |
Description

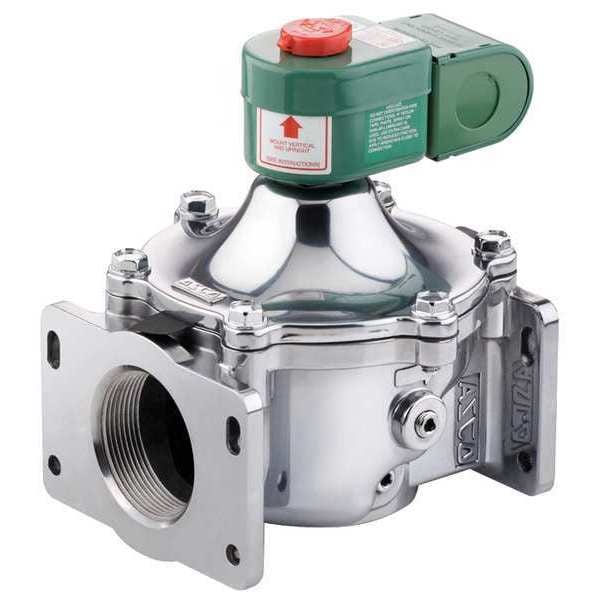

The Asco JB8214270CSA is a 2-way, 2-position, normally closed direct acting solenoid valve with a 1-1/2 inch pipe size and NPTF connections. It functions as a high flow gas shut off valve with a test port, operating at 120V AC with a maximum pressure differential of 5 psi for air, inert gas, fuel gas, and water, and a minimum of 0 psi for fuel gas, using an NBR seal.
