- Nominal Pipe Size: 1/4 in
- Orifice Diameter: 7/32 in
- Voltage: 120V AC
- Seal Material: PTFE
- Operating Pressure Differential - Maximum: 100 psi Air/Inert Gas, Cryogenic Fluid, Light Oil, Water
- Operating Pressure Differential - Minimum: 0 psi Air/Inert Gas, Cryogenic Fluid, Light Oil, Water
Specifications
| Part Number | 8262H114LT |
| Brand | Asco |
| For Media | Aggressive Gases, Aggressive Liquids, Air, Ammonia, Biodiesel Fuel, Cryogenic Fluids, Fuel Oil, Hot Water, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Nominal Pipe Size | 1/4 in |
| Inlet Connection Type | NPTF |
| Overall Height | 3-5/32 in |
| Overall Width | 1-31/32 in |
| Overall Length | 1-9/16 in |
| Orifice Diameter | 7/32 in |
| Outlet Connection Type | NPTF |
| Voltage | 120V AC |
| Valve Type | Cryogenic |
| Operation Type | Direct Acting |
| Seal Material | PTFE |
| Operating Pressure Differential - Maximum | 100 psi Air/Inert Gas, Cryogenic Fluid, Light Oil, Water |
| Operating Pressure Differential - Minimum | 0 psi Air/Inert Gas, Cryogenic Fluid, Light Oil, Water |
| Item | Solenoid Valve |
| Seat Material | PTFE |
| Body Material | Brass |
| Valve Design | 2-Way/2-Position |
| Coil Enclosure | Without Junction Box, Watertight |
| Standards | CE, CSA |
| Electrical Connections | 1/2" Conduit w/18" Leads |
| Coil Insulation Class | F |
| Application | Boilers, Burners, Car Wash Equipment, Compressors, Dishwashing and Laundry Equipment, Food Processing, Pumps |
| Mounting Orientation | Horizontal or Vertical |
| NEMA Enclosure Rating | 1, 2, 3, 3S, 4, 4X |
| Environmental Rating | Corrosive, Hazardous, Indoor, Outdoor |
| Valve Positions | 2-Position |
| Includes Coil | Yes |
| Response Time | 1 sec |
| Operating Pressure Differential Light Oil - Maximum | 100 psi |
| Operating Pressure Differential Hot Water - Maximum | Not Rated |
| Thread Type | NPT |
| Operating Pressure Differential Steam - Maximum | Not Rated |
| Operating Pressure Differential Light Oil - Minimum | 0 psi |
| Includes Seal | Yes |
| Fluid Temperature - Maximum | 150 Degrees F |
| Coefficient of Volume (Cv) | 0.73 |
| Ambient Temperature - Minimum | -13 Degrees F |
| Operating Pressure Differential Water - Maximum | 100 psi |
| Operating Pressure Differential Water - Minimum | 0 psi |
| Wattage | 17.1 W |
| Frequency | 60 Hz |
Description

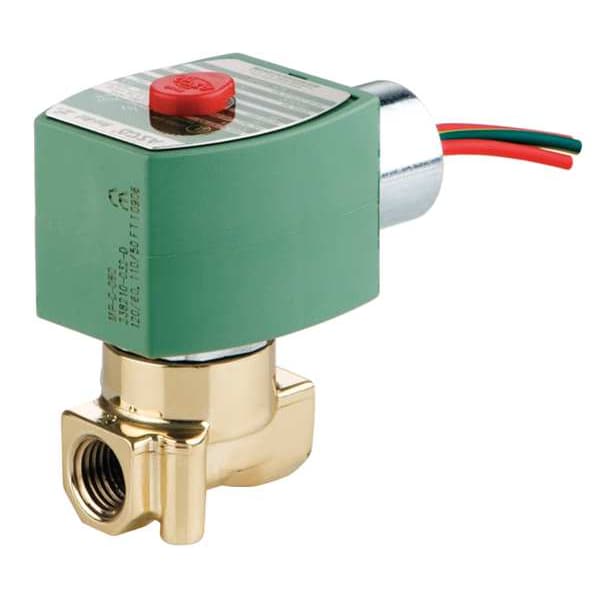

The Asco 8262H114LT is a 2-way, 2-position, normally closed direct-acting cryogenic solenoid valve. It controls the flow of air/inert gas, cryogenic fluid, light oil, or water, operating within a 0 to 100 psi pressure differential and requiring 120V AC. The valve features brass construction with PTFE seals and 1/4-inch NPTF inlet and outlet connections.
