- Nominal Pipe Size: 1/2 in
- Center Line Pipe Center Size: 3-13/32 in
- Orifice Diameter: 1/2 in
- Voltage: 120V AC
- Seal Material: EPDM, PTFE
- Operating Pressure Differential - Maximum: 150 psi Air/Inert Gas, Hot Water, 210 psi Light Oil, 50 psi Steam, Water
Specifications
| Part Number | 8220G404 |
| Brand | Asco |
| For Media | Hot Water, Steam |
| Valve Ways | 2-Way |
| Valve Starting Configuration | Normally Closed |
| Nominal Pipe Size | 1/2 in |
| Inlet Connection Type | NPTF |
| Center Line Pipe Center Size | 3-13/32 in |
| Overall Length | 2-7/8 in |
| Overall Height | 3-15/16 in |
| Overall Width | 2-1/4 in |
| Orifice Diameter | 1/2 in |
| Outlet Connection Type | NPTF |
| Voltage | 120V AC |
| Valve Type | Diaphragm, Piston |
| Operation Type | Pilot Operated |
| Seal Material | EPDM, PTFE |
| Operating Pressure Differential - Maximum | 150 psi Air/Inert Gas, Hot Water, 210 psi Light Oil, 50 psi Steam, Water |
| Operating Pressure Differential - Minimum | 5 psi Hot Water, Steam |
| Item | Solenoid Valve |
| Valve Design | Diaphragm |
| Max. Fluid Temp. Steam | 300 Degrees F |
| Electrical Connections | 1/2" Conduit w/18" Leads |
| Coil Insulation Class | F |
| Max. Fluid Temp. Hot Water | 210 Degrees F |
| Body Material | Brass |
| Coil Enclosure | Without Junction Box, Watertight |
| Ambient Temp. Range | 125 Degrees F |
| Application | Hot Water, Steam |
| Standards | CSA, UL Listed |
| Environmental Rating | Hazardous, Indoor, Outdoor, Washdown |
| Includes Coil | Yes |
| Operating Pressure Differential Steam - Maximum | 50 psi |
| Includes Seal | Yes |
| Thread Type | NPT |
| Operating Pressure Differential Water - Maximum | 50 psi |
| Operating Pressure Differential Light Oil - Maximum | 210 psi |
| Ambient Temperature - Minimum | 14 Degrees F |
| Operating Pressure Differential Hot Water - Maximum | 150 psi |
| Wattage | 6.1 W |
| NEMA Enclosure Rating | 1, 2, 3, 3S, 4, 4X |
| Valve Positions | 2-Position |
| Frequency | 50 Hz, 60 Hz |
| Ambient Temperature - Maximum | 140 Degrees F |
| Operating Pressure Differential Steam - Minimum | 5 psi |
| Operating Pressure Differential Hot Water - Minimum | 5 psi |
| Fluid Temperature - Maximum | 300 Degrees F |
| Coefficient of Volume (Cv) | 4.7 |
Description

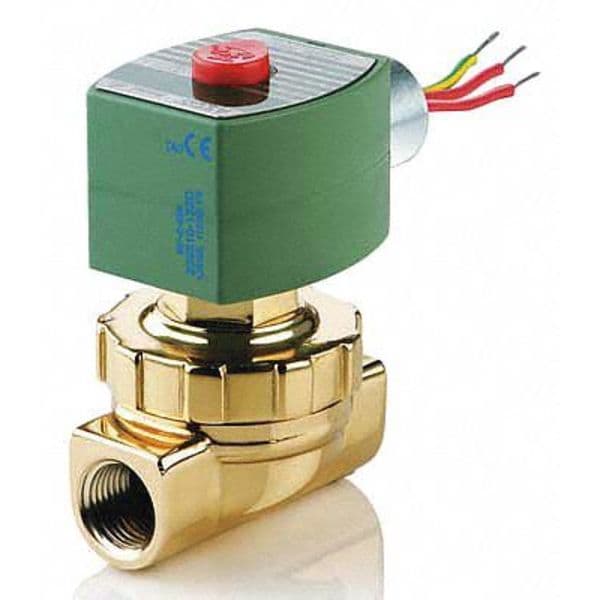

The Asco 8220G404 is a 2-way, 2-position, normally closed solenoid valve with a 1/2-inch NPTF inlet and outlet. This pilot-operated diaphragm and piston valve controls flow in response to 120V AC power, with EPDM and PTFE seals. It operates with a minimum pressure differential of 5 psi for hot water and steam, and a maximum differential of 150 psi for air/inert gas and hot water, 210 psi for light oil, and 50 psi for steam and water.
