- Connection Type/Size: (F)NPT 3/4
- Port Connection Size: 3/4 in
- Max. Water Temp. (Deg. F): 250 Degrees F
- Gasket Material: Ethylene Propylene
- Packing Material: Ethylene Propylene
- Operating Temperature - Minimum: 35 Degrees F
Specifications
| Part Number | 599-02044 |
| Brand | Siemens |
| Type | Globe |
| For Use With | Water |
| Includes | Control Valve |
| Agency Compliance | UL |
| Coefficient of Volume | 6.3 |
| Connection Type/Size | (F)NPT 3/4 |
| Height | 2 3/8 in |
| Depth | 1 5/16 in |
| Width | 4 3/4 in |
| Overall Length | 3 7/32 in |
| Overall Depth | 1 9/16 in |
| Overall Height | 3 1/8 in |
| Port Connection Size | 3/4 in |
| Item | Hydronic Globe Valve |
| Max. Water Temp. (Deg. F) | 250 Degrees F |
| Specifications | Brass Trim, Globe Valve, MT Series |
| Body Pattern | Two-Way |
| Leakage Rate | 0.01% |
| Manufacturer Series | MT |
| Port Connection Gender | Female |
| Includes Actuator | Actuator Not Included |
| Gasket Material | Ethylene Propylene |
| Installation Orientation | Versatile |
| Coefficient of Volume (Cv) | 6.3 |
| Packing Material | Ethylene Propylene |
| Operating Temperature - Minimum | 35 Degrees F |
| Close-Off Pressure | 70 psi |
| Trim Material | Brass |
| Seat Material | Stainless Steel |
| Port Connection Type | NPT |
| Stem Material | Stainless Steel |
| Configuration | Straight-Thru |
| Flow Characteristic | Equal Percentage |
| Operating Temperature - Maximum | 250 Degrees F |
| Stem Travel | 7/32 in |
| For Media | Water, Water-Glycol Solution to 50% |
| Valve Action | Normally Open |
| ANSI Rating | ANSI Class 250 |
| Rangeability | Greater Than100:1 |
| Body Material | Brass |
Description

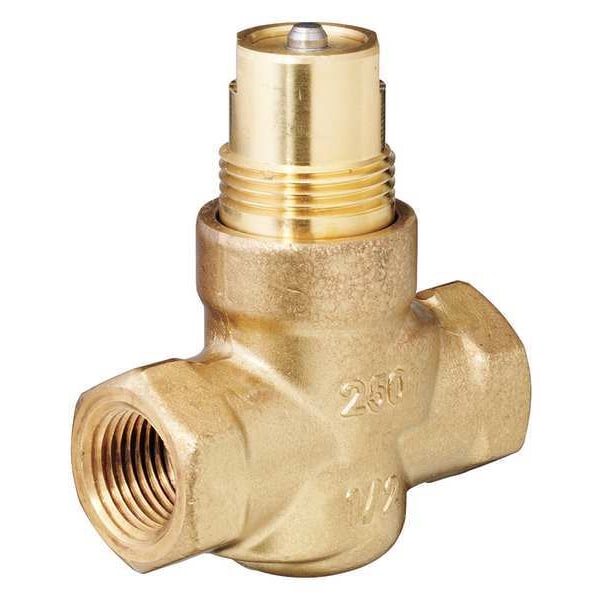

The Siemens 599-02044 is a hydronic globe valve from the MT series, functioning as a 2-way, normally open control valve. This valve regulates water flow in hydronic systems, featuring a 3/4-inch FNPT connection and a 6.3 Cv equal-percentage flow characteristic, with a maximum water temperature of 250 degrees Fahrenheit.
