- Input Voltage - Transformer: 120/240/277/480V AC
- Output Voltage: 24V AC
- Phase: 1
- Circuit Breaker Size: 4 A
- Hz - Electrical: 50/60 Hz
- NEMA Enclosure Rating: NEMA 1
Specifications
| Part Number | PSH300A |
| Brand | Functional Devices-Rib |
| Input Voltage - Transformer | 120/240/277/480V AC |
| Output Voltage | 24V AC |
| Power Rating | 100 VA |
| Phase | 1 |
| Mounting - Transformer | Wall |
| Overall Height | 12.13 in |
| Overall Width | 12.12 in |
| Overall Depth | 6 in |
| Circuit Breaker Size | 4 A |
| Item | Class 2 Transformer |
| Hz - Electrical | 50/60 Hz |
| NEMA Enclosure Rating | NEMA 1 |
| Temperature Rise | Not Rated |
| Secondary Connection | Screw Terminals |
| Enclosure Finish | Powder Coated |
| Primary Connection | Screw Terminals |
| Enclosure Style - Transformer | Enclosed |
| Enclosure Type | Enclosed |
| Standards | CE, OSHPD Seismic Certified, RoHS, UL Class 2, UL Listed |
| Includes | 10A Main Breaker Switch, 120V AC Convenience Outlets, Finger-Safe Terminals, LED Power Indicator, On/Off Control |
| Protective Device | Circuit Breaker |
| Ambient Temperature Derating | 4A up to 40° C ; 3A up to 50° C ; 2A up to 55° C |
| Approvals | Class 2 (UL Approved UL5085-3), UL916, C-UL, CE |
| Standby Wattage | 16.61 W @ 120 Vac 17.70 W @ 240 Vac 16.26 W @ 277 Vac 19.20 W @ 480 Vac |
| Full Load Primary Current | 2.66 A @ 120 Vac 1.36 A @ 240 Vac 1.18 A @ 277 Vac 0.68 A @ 480 Vac |
| Output | 3 Ungrounded, Isolated, 100 VA, Class 2, 24 Vac Outputs. Terminals accept 12-26 AWG wire. |
| 3 Secondaries | 24 Vac, with LED Indicators 4 Amp breaker for each output |
| Transformer | One (1) 300 VA |
| 24 Vac ON/OFF | On / Off Switch & Breaker |
| Secondary Output Voltage vs. Load | 24.5 V @ 1 Amp 23.5 V @ 2 Amp 22.8 V @ 3 Amp 22.3 V @ 4 Amp |
| Number of Outputs | 2 |
| Overcurrent Protection | Circuit Breaker |
| Number of Convenience Outlets | 1 |
| Wire Connection Type | Screw Terminals |
| Housing Material | Metal |
| Includes On/Off Switch | Individual Output On/Off Switch |
| Operating Temperature - Maximum | 131 Degrees F |
Description

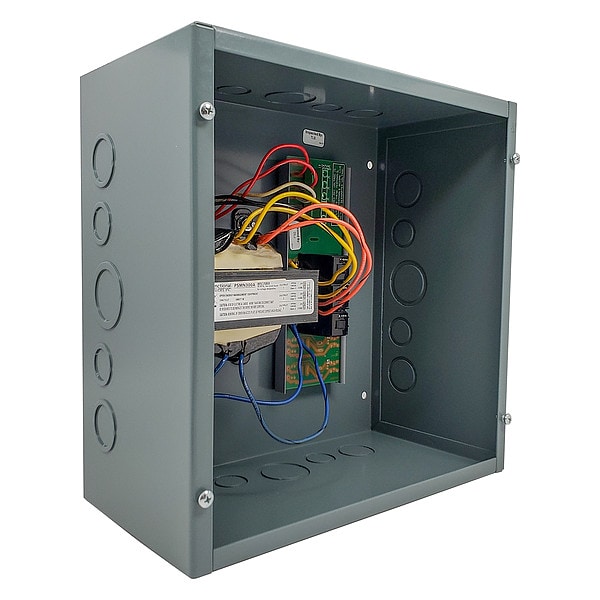

The Functional Devices-Rib PSH300A is a Class 2 transformer with a 100 VA power rating. It converts an input voltage of 120/240/277/480V AC to a 24V AC output at 50/60 Hz. This single-phase unit is housed in a NEMA 1 enclosure.
