- Voltage: 24VAC
- Display Size: 8 sq. in.
- Digit Size: Easy Read
- Temporary Temperature Hold: Yes
- Temp. Settings per Day: 4, 2
- Temporary Program Override: Yes
Specifications
| Part Number | T855SH |
| Brand | Pro1 Iaq |
| Voltage | 24VAC |
| Stages Heat | 4 Heat Pump or 2 Conventional |
| Color | White |
| Control Range | 44 Degrees to 90 Degrees F |
| System Switching | Heat-Cool-Off |
| Height | 4-13/32" |
| Width | 4-45/64" |
| Depth | 1-7/64" |
| Display Size | 8 sq. in. |
| Overall Depth | 1 1/8 in |
| Overall Height | 4 3/8 in |
| Overall Width | 4 11/16 in |
| Digit Size | Easy Read |
| Item | Low Voltage Thermostat |
| Stages Cool | 2 |
| Dual Transformer Compatible | Yes |
| Power Method | Hardwired/Battery |
| 750mV Compatible | Yes |
| Programs per Week | 7 or 5-1-1 |
| Display Type | Digital |
| Includes | Mounting Hardware |
| Display Color | Blue |
| Programmable Fan | Yes |
| WiFi Capability | No |
| Control Type | Push Button |
| Temporary Temperature Hold | Yes |
| Terminal Designations | B, C, D, G, H, O, RC, RH, S1, S2, W/E, W2, Y, Y2 |
| Low Battery Indicator | Yes |
| Temp. Settings per Day | 4, 2 |
| Stages | 2H/3C Conventional, 5H/3C Heat Pump |
| Key Pad Lockout | Yes |
| Automatic Changeover | Yes |
| Batteries Included | Yes |
| Fan Switching | Auto-On |
| Temporary Program Override | Yes |
| Dehumidification Control | Yes |
| Features | Glow In The Dark Light Button, Humidity and Dehumidity Control, Two and Four Occupancy/Unoccupancy Time Periods Available, Partial and Full Keypad Lockout, Auto Changeover |
| Temperature Limiting | Yes |
| Battery Backup | Yes |
| For Use With | Heating and Cooling |
| Filter Indicator | Yes |
| Humidification Control | Yes |
| Number of Heating Stages - Heat Pump System | 5 |
| Number of Cooling Stages - Heat Pump System | 3 |
| Thermostat Type | Low Voltage |
| Maximum Operating Humidity | 90 % |
| Temperature settings per day | 2, 4 |
| Application/Stages | Heat and Cool; 2H/3C Conventional, 5H/3C Heat Pump |
| Includes Batteries | Yes |
| Number of Cooling Stages - Conventional System | 3 |
| Backlit Screen | Yes |
| System Settings | Cool-Heat-Off |
| Frequency | 50 Hz, 60 Hz |
| Electrical Connection Type | Hardwired |
| Temperature Readout | Yes |
| Smart Connectivity | No Connectivity |
| Operating Temperature Range | 32 Degrees to 105 Degrees F |
| Differential Heat | 0.2 Degrees F, 2 Degrees F |
| Sensor Location | Remote |
| Battery Type | (2) AA Batteries |
| Mounting Direction | Horizontal |
| Application | Heat and Cool |
| Changeover Type | Automatic |
| Shape | Rectangle |
| Includes Positive Off | Yes |
| System/Fan Settings | Cool-Heat-Off/Auto-On |
| Number of Heating Stages - Conventional System | 2 |
| Millivolt Compatible | Yes |
| Maximum Control Temperature | 90 Degrees F |
| Minimum Control Temperature | 44 Degrees F |
| Minimum Operating Temperature | 32 Degrees F |
| Temperature Scale | Fahrenheit/Celsius |
| Temperature Control Range | 44 Degrees to 90 Degrees F |
| Differential Cool | 0.2 Degrees F, 2 Degrees F |
| Mounting Direction/Shape | Horizontal, Vertical |
| Differential Type | Adjustable |
| Fan Settings | Auto-On |
| Filter Change Reminder | Yes |
| Housing Color | White |
| Maximum Operating Temperature | 105 Degrees F |
| Backlit Screen Color | Blue |
| Programming Capability | 5-1-1, 7 Day |
| Temperature Sensitivity | +/-1 Degrees F |
| Temperature Differential | 0.2 Degrees to 2.0 Degrees F |
| Compatible System Type | Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux, Heat Pump without Aux, Millivolt, PTAC |
Description

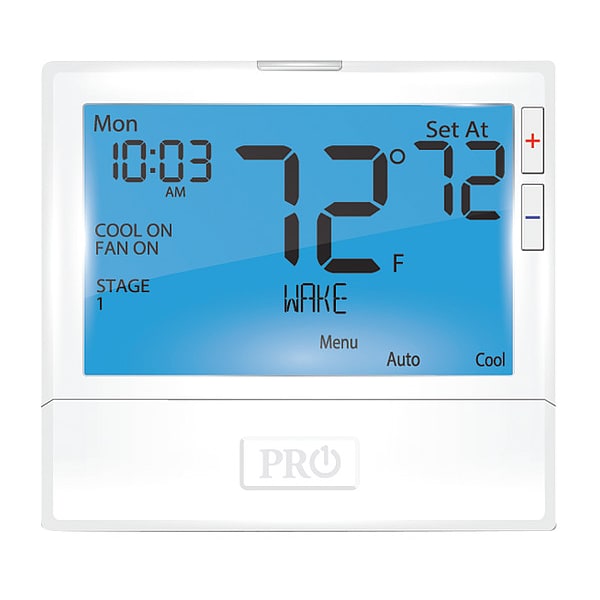

The Pro1 Iaq T855SH is a low voltage digital thermostat operating at 24VAC. It is compatible with dual transformer and 750mV systems, and includes mounting hardware. This thermostat supports 7 or 5-1-1 programs for 4 heat pump or 2 conventional heat and 2 cool stages, with a 5H/3C CommStat programmable or non-programmable configuration.
